1001-1541-010

Active

Radiall USA, Inc.

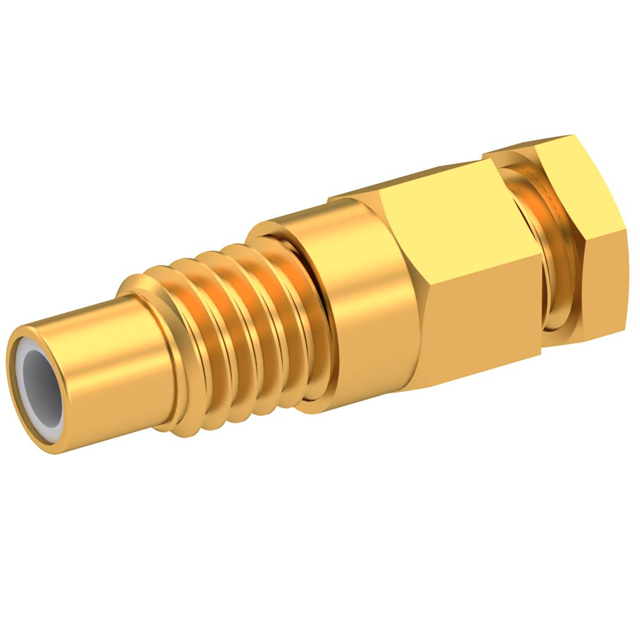

SMC / STRAIGHT JACK MALE SOLDER

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMC / STRAIGHT JACK MALE SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1001-1541-010

Body Finish	Gold
Body Material	Brass
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp

Part	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Body Finish	Body Material	Connector Style	Contact Termination	Center Contact Plating	Connector Type	Housing Color	Shield Termination	Impedance	Number of Ports	Mounting Type	Frequency - Max [Max]	Dielectric Material
Radiall USA, Inc. 1001-1541-010	RG-405 (.085" Semi Rigid)	-65 ░C	165 °C	500	Gold	Brass	SMC	Solder	Gold	Jack Male Pin	Gold	Clamp	50 Ohms	1	Free Hanging (In-Line)	10 GHz	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 19.94

General part information

SMC Connector Jack, Male Pin 50 Ohms Free Hanging (In-Line) Solder
