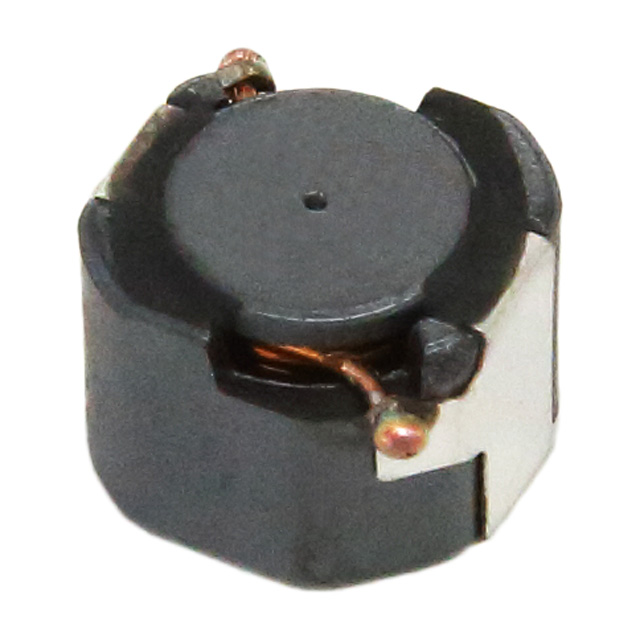

CLF6045T-100M-D
EPCOS - TDK Electronics
INDUCTOR: WIRE; SMD; 10UH; 1.7A; 45.6MΩ; ±20%; CLF; -40÷150°C
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CLF6045T-100M-D |
|---|---|
| Current - Saturation (Isat) | 1.7 A |
| Current Rating (Amps) | 2.4 A |
| DC Resistance (DCR) [Max] | 45.6 mOhm |
| Height - Seated (Max) [Max] [z] | 0.189 " |
| Height - Seated (Max) [Max] [z] | 4.8 mm |
| Inductance | 10 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 6.2 mm |
| Size / Dimension [x] | 0.244 " |
| Size / Dimension [y] | 5.9 mm |
| Size / Dimension [y] | 0.232 in |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.10 | |
| 10 | $ 0.94 | |||
| 25 | $ 0.85 | |||
| 50 | $ 0.80 | |||
| 100 | $ 0.66 | |||
| 250 | $ 0.61 | |||
| 500 | $ 0.58 | |||
| Digi-Reel® | 1 | $ 1.10 | ||
| 10 | $ 0.94 | |||
| 25 | $ 0.85 | |||
| 50 | $ 0.80 | |||
| 100 | $ 0.66 | |||
| 250 | $ 0.61 | |||
| 500 | $ 0.58 | |||
| Tape & Reel (TR) | 1000 | $ 0.53 | ||
| 3000 | $ 0.51 | |||
| 5000 | $ 0.49 | |||
| 10000 | $ 0.48 | |||
Description
General part information
clf Series
10 µH Shielded Drum Core, Wirewound Inductor 2.4 A 45.6mOhm Max Nonstandard
