RAC04-15SC/277-E

RECOM Power

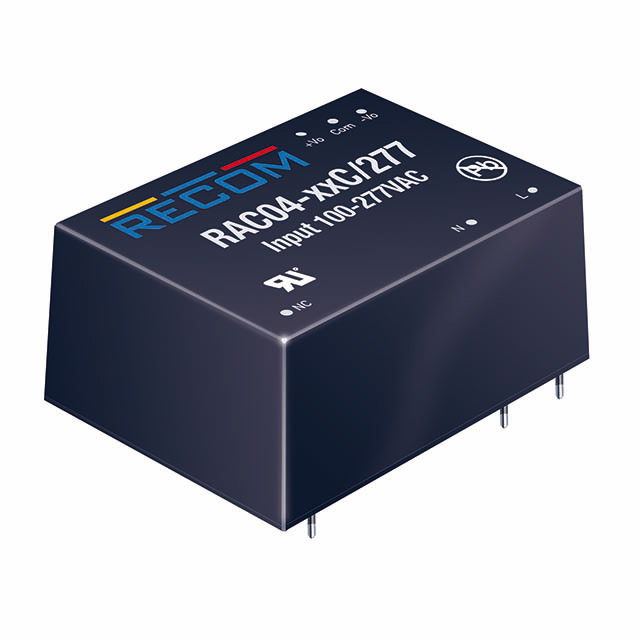

AC/DC PCB MOUNT POWER SUPPLY (PSU), 1 OUTPUT, 4 W, 15 V, 267 MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

RAC04-15SC/277-E

RECOM Power

AC/DC PCB MOUNT POWER SUPPLY (PSU), 1 OUTPUT, 4 W, 15 V, 267 MA

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RAC04-15SC/277-E

Applications	ITE (Commercial)
Approval Agency	CB, cURus, CE
Current - Output (Max) [Max]	267 mA
Efficiency	79 %
Features	SCP
Line Regulation	±0.2%
Load Regulation	0.5 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	80 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	7-DIP Module, 6 Leads
Power (Watts)	4 W
Size / Dimension [x]	1.44 "
Size / Dimension [x]	36.7 mm
Size / Dimension [y]	1.07 in
Size / Dimension [y]	27.2 mm
Size / Dimension [z]	0.67 in
Size / Dimension [z]	17.1 mm
Type	Enclosed
Voltage - Input [Max]	305 VAC
Voltage - Input [Min]	80 VAC
Voltage - Output 1	15 V
Weight	0.091 lb
Weight	41.28 g

RAC04-S_DC/277 Series

AC/DC Power Modules 4W 85-305Vin 5Vout 800mA

Part	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Package / Case	Voltage - Output 1	Type	Line Regulation	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Weight	Efficiency	Load Regulation	Approval Agency	Power (Watts)	Features	Line Regulation	Size / Dimension [y]	Size / Dimension [z]	Standard Number	Current - Output (Max)
RECOM Power RAC04-05SGB	800 mA	0.59 in	15 mm	37 mm	1.46 in	24 mm	0.94 in	Through Hole	1	85 VAC	305 VAC	16-DIP Module 5 Leads	5 V	Enclosed	0.5 %	Household Appliances ITE (Commercial)	85 °C	-40 °C	0.044 lb	19.96 g	72 %	0.5 %	CE cURus	4 W
RECOM Power RAC04-05SC/277	800 mA	0.67 in		36.7 mm	1.44 "		1.07 in	Through Hole	1	80 VAC	305 VAC	7-DIP Module 6 Leads	5 V	Enclosed		ITE (Commercial)	80 ¯C	-25 °C	0.069 lb	31.3 g	75 %	1 %	CE EN UL	4 W	SCP	±0.2%	27.2 mm	17.1 mm
RECOM Power RAC04-15SC/277-E	267 mA	0.67 in		36.7 mm	1.44 "		1.07 in	Through Hole	1	80 VAC	305 VAC	7-DIP Module 6 Leads	15 V	Enclosed		ITE (Commercial)	80 ¯C	-40 °C	0.091 lb	41.28 g	79 %	0.5 %	CB CE cURus	4 W	SCP	±0.2%	27.2 mm	17.1 mm
RECOM Power RAC04-12SC	333 mA	0.65 in		37.8 mm	1.49 in		0.94 in	Through Hole	1	80 VAC	264 VAC	16-DIP Module 5 Leads	12 V	Enclosed	0.5 %	ITE (Commercial)	85 °C	-25 °C	0.066 lb	29.94 g	74 %	1.5 %	CE cULus	4 W	Universal Input		23.9 mm	16.4 mm	60950-1
RECOM Power RAC04-12SC/277	333 mA	0.67 in		36.7 mm	1.44 "		1.07 in	Through Hole	1	80 VAC	305 VAC	7-DIP Module 6 Leads	12 V	Enclosed	2 %	ITE (Commercial)	80 ¯C	-25 °C	0.069 lb	31.3 g	78 %	0.5 %	CE EN UL	4 W	SCP		27.2 mm	17.1 mm
RECOM Power RAC04-12SC/277-E	333 mA	0.67 in		36.7 mm	1.44 "		1.07 in	Through Hole	1	80 VAC	305 VAC	7-DIP Module 6 Leads	12 V	Enclosed		ITE (Commercial)	80 ¯C	-40 °C	0.091 lb	41.28 g	78 %	0.5 %	CB CE cURus	4 W	SCP	±0.2%	27.2 mm	17.1 mm
RECOM Power RAC04-24SC/277	167 mA	0.67 in		36.7 mm	1.44 "		1.07 in	Through Hole	1	80 VAC	305 VAC	7-DIP Module 6 Leads	24 V	Enclosed	2 %	ITE (Commercial)	80 ¯C	-25 °C	0.069 lb	31.3 g	79 %	0.5 %	CE EN UL	4 W	SCP		27.2 mm	17.1 mm
RECOM Power RAC04-05SGA	800 mA	0.59 in	15 mm	37 mm	1.46 in	24 mm	0.94 in	Through Hole	1	85 VAC 120 VDC	305 VAC 430 VDC	16-DIP Module 5 Leads	5 V	Enclosed	0.5 %	Household Appliances ITE (Commercial)	85 °C	-40 °C	0.044 lb	19.96 g	72 %	0.5 %	CE cURus EAC FCC	4 W
RECOM Power RAC04-12SGA		0.59 in	15 mm	37 mm	1.46 in	24 mm	0.94 in	Through Hole	1	85 VAC	305 VAC	16-DIP Module 5 Leads	12 V	Enclosed	0.5 %	Household Appliances ITE (Commercial)	85 °C	-40 °C	0.044 lb	19.96 g	78 %	0.5 %	CE cURus	4 W						330 mA
RECOM Power RAC04-05SC/277-E	800 mA	0.67 in		36.7 mm	1.44 "		1.07 in	Through Hole	1	80 VAC	305 VAC	7-DIP Module 6 Leads	5 V	Enclosed		ITE (Commercial)	80 ¯C	-40 °C	0.091 lb	41.28 g	75 %	1 %	CB CE cURus	4 W	SCP	±0.2%	27.2 mm	17.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 23.09
		5	$ 21.99
		10	$ 21.54
		25	$ 20.95
		50	$ 20.51
		100	$ 20.09
		250	$ 19.54
		500	$ 19.13
Newark	Each	10	$ 20.75
		25	$ 20.44
		50	$ 20.16
		100	$ 19.86
Sager	N/A	1	$ 22.28
		5	$ 21.56
		10	$ 20.56
		25	$ 19.95
		50	$ 19.65
		100	$ 19.10
		250	$ 17.81

Description

General part information

RAC04-S_DC/277 Series

AC/DC Power Modules 4W 85-305Vin 5Vout 800mA

Documents

Technical documentation and resources

Datasheet

Document
