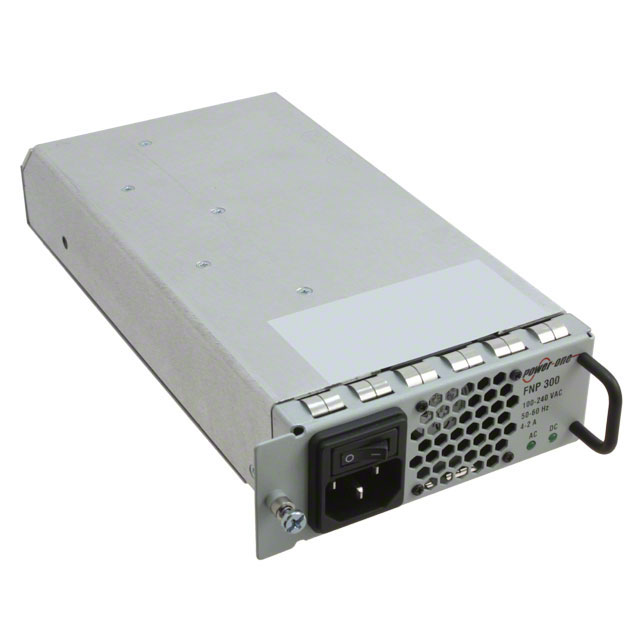

FNP300-1048G

Active

EOS Power India Private Ltd

AC/DC CONVERTER 48V 12V 300W

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

AC/DC CONVERTER 48V 12V 300W

Technical Specifications

Parameters and characteristics for this part

Specification	FNP300-1048G

Applications	ITE (Commercial)
Current - Output 1	6.25 A
Current - Output 2	700 mA
Efficiency	88 %
Features	Universal Input, Adjustable Output, Standby Output, Remote Sense, I2C Interface
Minimum Load Required	False
Mounting Type	Rack Mount
Number of Outputs	2
Power (Watts)	300 W
Size / Dimension [x]	4 in
Size / Dimension [x]	101.6 mm
Size / Dimension [y]	41.9 mm
Size / Dimension [y]	1.65 in
Size / Dimension [z]	215.9 mm
Size / Dimension [z]	8.5 in
Type	Front End
Voltage - Isolation	4000 V
Voltage - Output 1	48 V
Voltage - Output 2	12 V

Part	Approval Agency	Voltage - Output 2	Applications	Type	Efficiency	Standard Number	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Voltage - Output 1	Current - Output 2	Number of Outputs	Features	Current - Output 1	Mounting Type	Voltage - Isolation
EOS Power India Private Ltd FNP300-1012HG	CE	12 V	ITE (Commercial)	Front End	83 %	60950-1	101.6 mm	1.58 "	4 "	215.9 mm	40.1 mm	8.5 in	308 W	12 V	700 mA	2	Adjustable Output Universal Input	25 A	Rack Mount
EOS Power India Private Ltd FNP300-1048G		12 V	ITE (Commercial)	Front End	88 %		41.9 mm	8.5 in	1.65 in	101.6 mm	215.9 mm	4 in	300 W	48 V	700 mA	2	Adjustable Output I2C Interface Remote Sense Standby Output Universal Input	6.25 A	Rack Mount	4000 V
EOS Power India Private Ltd FNP300-1012G		12 V	ITE (Commercial)	Front End	83 %		41.9 mm	8.5 in	1.65 in	101.6 mm	215.9 mm	4 in	300 W	12 V	700 mA	2	Adjustable Output I2C Interface Remote Sense Standby Output Universal Input	25 A	Rack Mount	4000 V
EOS Power India Private Ltd FNP300-1024G		12 V	ITE (Commercial)	Front End	86 %		41.9 mm	8.5 in	1.65 in	101.6 mm	215.9 mm	4 in	300 W	24 V	700 mA	2	Adjustable Output I2C Interface Remote Sense Standby Output Universal Input	12.5 A	Rack Mount	4000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 225.00

General part information

Front End AC DC Converters 2 Output 48V 12V 85 ~ 264 VAC Input

Technical documentation and resources

No documents available
