350-80-147-00-019101

Active

PRECI-DIP SA

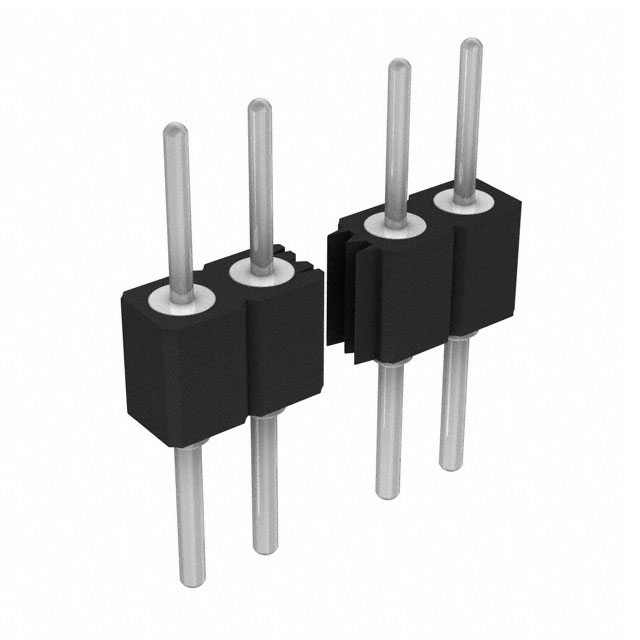

CONN HEADER VERT 47POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

350-80-147-00-019101

Active

PRECI-DIP SA

CONN HEADER VERT 47POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	350-80-147-00-019101

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	3 mm
Contact Length - Mating	0.118 in
Contact Length - Post	0.108 in
Contact Length - Post	2.75 mm
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	1.8 mm
Insulation Height	0.071 "
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.301 in
Overall Contact Length	7.64 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	150 VDC

350-80 Series

...

Part	Number of Positions Loaded	Fastening Type	Contact Finish - Post	Mounting Type	Current Rating (Amps)	Connector Type	Contact Length - Post	Contact Length - Post	Shrouding	Voltage Rating	Contact Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Insulation Material	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Termination	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Rows	Insulation Color	Contact Length - Post [x]	Number of Positions	Number of Positions	Contact Length - Post [x]	Contact Finish Thickness - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]
PRECI-DIP SA 350-80-147-00-019101	All	Push-Pull	Tin	Through Hole	3 A	Header	0.108 in	2.75 mm	Unshrouded	150 VDC	Male Pin	UL94 V-0	0.1 in	2.54 mm	3 mm	0.118 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1.8 mm	0.071 "	0.301 in	7.64 mm	Solder	Circular	-55 °C	125 °C	Brass	1	Black
PRECI-DIP SA 350-80-110-01-666101	All	Push-Pull	Tin	Through Hole	3 A	Header		2.79 mm	Unshrouded	150 VDC	Male Pin	UL94 V-0	0.1 in	2.54 mm	3.6 mm	0.141 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.95 mm	0.116 in	0.39 in	9.9 mm	Press-Fit Solder	Circular	-55 °C	125 °C	Brass	1	Black	0.11 in	10
PRECI-DIP SA 350-80-114-01-666101	All	Push-Pull	Tin	Through Hole	3 A	Header		2.79 mm	Unshrouded	150 VDC	Male Pin	UL94 V-0	0.1 in	2.54 mm	3.6 mm	0.141 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.95 mm	0.116 in	0.39 in	9.9 mm	Press-Fit Solder	Circular	-55 °C	125 °C	Brass	1	Black	0.11 in	14
PRECI-DIP SA 350-80-116-00-024101	All	Push-Pull	Tin	Through Hole	3 A	Header			Unshrouded	150 VDC	Male Pin	UL94 V-0	0.1 in	2.54 mm	3.18 mm	0.125 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1.8 mm	0.071 "	0.335 in	8.51 mm	Solder	Circular	-55 °C	125 °C	Brass	1	Black	0.125 in		16	3.18 mm
PRECI-DIP SA 350-80-158-01-899101	All	Push-Pull	Tin	Surface Mount	3 A	Header			Unshrouded	150 VDC	Male Pin	UL94 V-0	0.1 in	2.54 mm	3.6 mm	0.141 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester					Solder	Circular	-55 °C	125 °C	Brass	1	Black		58			Flash
PRECI-DIP SA 350-80-105-01-666101	All	Push-Pull	Tin	Through Hole	3 A	Header		2.79 mm	Unshrouded	150 VDC	Male Pin	UL94 V-0	0.1 in	2.54 mm	3.6 mm	0.141 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.95 mm	0.116 in	0.39 in	9.9 mm	Press-Fit Solder	Circular	-55 °C	125 °C	Brass	1	Black	0.11 in
PRECI-DIP SA 350-80-134-00-018101	All	Push-Pull	Tin	Through Hole	3 A	Header	0.124 "	3.15 mm	Unshrouded	150 VDC	Male Pin	UL94 V-0	0.1 in	2.54 mm			Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester			0.48 in	12.19 mm	Solder	Circular	-55 °C	125 °C	Brass	1	Black		34				4.3 mm	0.169 in
PRECI-DIP SA 350-80-164-01-899101	All	Push-Pull	Tin	Surface Mount	3 A	Header			Unshrouded	150 VDC	Male Pin	UL94 V-0	0.1 in	2.54 mm	3.6 mm	0.141 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester					Solder	Circular	-55 °C	125 °C	Brass	1	Black		64			Flash
PRECI-DIP SA 350-80-127-01-666101	All	Push-Pull	Tin	Through Hole	3 A	Header		2.79 mm	Unshrouded	150 VDC	Male Pin	UL94 V-0	0.1 in	2.54 mm	3.6 mm	0.141 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	2.95 mm	0.116 in	0.39 in	9.9 mm	Press-Fit Solder	Circular	-55 °C	125 °C	Brass	1	Black	0.11 in	27
PRECI-DIP SA 350-80-111-00-019101	All	Push-Pull	Tin	Through Hole	3 A	Header	0.108 in	2.75 mm	Unshrouded	150 VDC	Male Pin	UL94 V-0	0.1 in	2.54 mm	3 mm	0.118 in	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1.8 mm	0.071 "	0.301 in	7.64 mm	Solder	Circular	-55 °C	125 °C	Brass	1	Black		11

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	130	$ 5.85

Description

General part information

350-80 Series

Connector Header Through Hole 47 position 0.100" (2.54mm)
