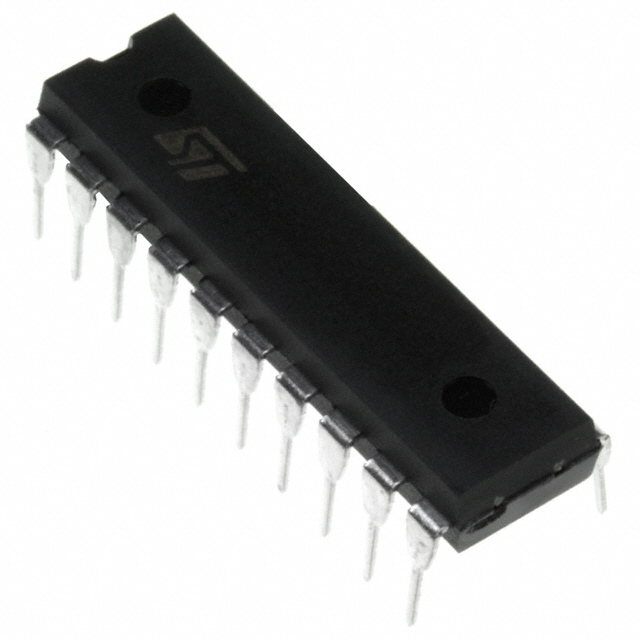

74ACT573B

Obsolete

STMicroelectronics

IC D-TYPE TRANSP SGL 8:8 20DIP

Search across all available documentation for this part.

Obsolete

STMicroelectronics

IC D-TYPE TRANSP SGL 8:8 20DIP

Technical Specifications

Parameters and characteristics for this part

Part	Circuit [custom]	Circuit [custom]	Independent Circuits	Package / Case	Package / Case	Package / Case	Mounting Type	Output Type	Logic Type	Supplier Device Package	Delay Time - Propagation	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output High, Low	Package / Case [y]	Package / Case [x]
STMicroelectronics 74ACT573B	8	8	1	20-DIP	7.62 mm	0.3 in	Through Hole	Tri-State	D-Type Transparent Latch	20-DIP	5 ns	4.5 V	5.5 V	-55 °C	125 °C	24 mA
STMicroelectronics 74ACT573TTR	8	8	1	20-TSSOP			Surface Mount	Tri-State	D-Type Transparent Latch	20-TSSOP	5 ns	4.5 V	5.5 V	-55 °C	125 °C	24 mA	4.4 mm	0.173 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

D-Type Transparent Latch 1 Channel 8:8 IC Tri-State 20-DIP
