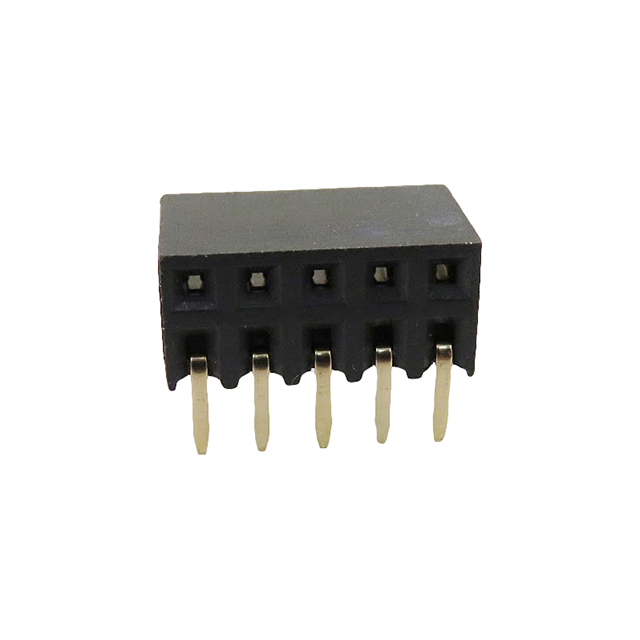

RS2BR-10-G

Active

Adam Tech

RECEPTACLE STRIP 10P 2.54MM PITC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

RS2BR-10-G

Active

Adam Tech

RECEPTACLE STRIP 10P 2.54MM PITC

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RS2BR-10-G

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.85 mm
Insulation Height	0.23 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	250 VAC

RS2BR Series

Part	Contact Material	Voltage Rating	Contact Type	Fastening Type	Current Rating (Amps)	Number of Rows	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Insulation Height	Insulation Height	Insulation Material	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish - Mating	Number of Positions	Mounting Type	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Insulation Color	Number of Positions Loaded	Contact Finish Thickness - Mating
Adam Tech RS2BR-20-G	Phosphor Bronze	250 VAC	Female Socket	Push-Pull	3 A	2	Solder	2.54 mm	0.1 in	Receptacle	5.85 mm	0.23 in	Polybutylene Terephthalate (PBT) Glass Filled	0.118 in	3 mm	Gold	Square	-40 °C	105 ░C	Flash	Gold	20	Through Hole Right Angle	0.1 in	2.54 mm	UL94 V-0	Black	All	Flash
Adam Tech RS2BR-12-G	Phosphor Bronze	250 VAC	Female Socket	Push-Pull	3 A	2	Solder	2.54 mm	0.1 in	Receptacle	5.85 mm	0.23 in	Polybutylene Terephthalate (PBT) Glass Filled	0.118 in	3 mm	Gold	Square	-40 °C	105 ░C	Flash	Gold	12	Through Hole Right Angle	0.1 in	2.54 mm	UL94 V-0	Black	All	Flash
Adam Tech RS2BR-10-G	Phosphor Bronze	250 VAC	Female Socket	Push-Pull	3 A	2	Solder	2.54 mm	0.1 in	Receptacle	5.85 mm	0.23 in	Polybutylene Terephthalate (PBT) Glass Filled	0.118 in	3 mm	Gold	Square	-40 °C	105 ░C	Flash	Gold	10	Through Hole Right Angle	0.1 in	2.54 mm	UL94 V-0	Black	All	Flash
Adam Tech RS2BR-08-G	Phosphor Bronze	250 VAC	Female Socket	Push-Pull	3 A	2	Solder	2.54 mm	0.1 in	Receptacle	5.85 mm	0.23 in	Polybutylene Terephthalate (PBT) Glass Filled	0.118 in	3 mm	Gold	Square	-40 °C	105 ░C	Flash	Gold	8	Through Hole Right Angle	0.1 in	2.54 mm	UL94 V-0	Black	All	Flash
