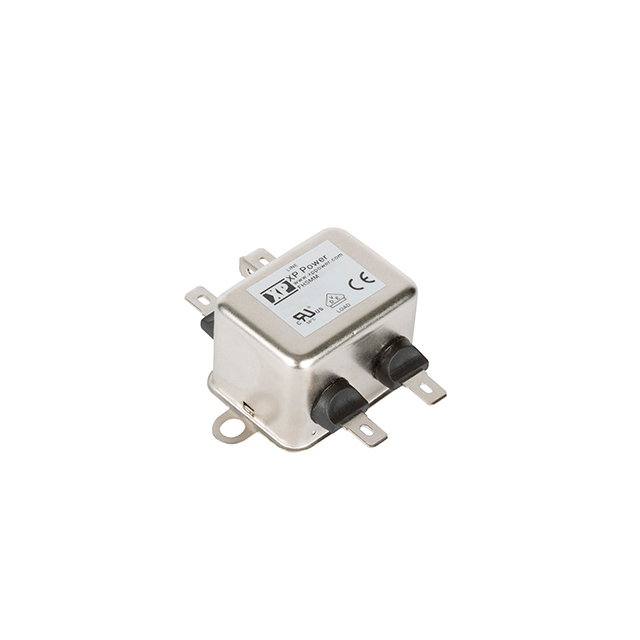

FHSMM20A2FR
ActiveXP POWER
LINE FILTER 250VAC 20A CHASSIS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FHSMM20A2FR
ActiveXP POWER
LINE FILTER 250VAC 20A CHASSIS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FHSMM20A2FR |
|---|---|
| Applications | Medical |
| Approval Agency | UL, EN |
| Configuration | Single Stage |
| Current | 20 A |
| Filter Type | Single Phase |
| Frequency - Operating | 400 Hz |
| Inductance | 600 µH |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -40 °C |
| Termination Style | Quick Connect |
| Voltage - Rated AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 19.80 | |
| 5 | $ 19.21 | |||
| 10 | $ 18.61 | |||
| 25 | $ 17.82 | |||
| 100 | $ 16.63 | |||
Description
General part information
FHSMM20 Series
Single Phase EMC/EMI Line Filter 20 A 250V DC ~ 400Hz Single Stage Quick Connect
