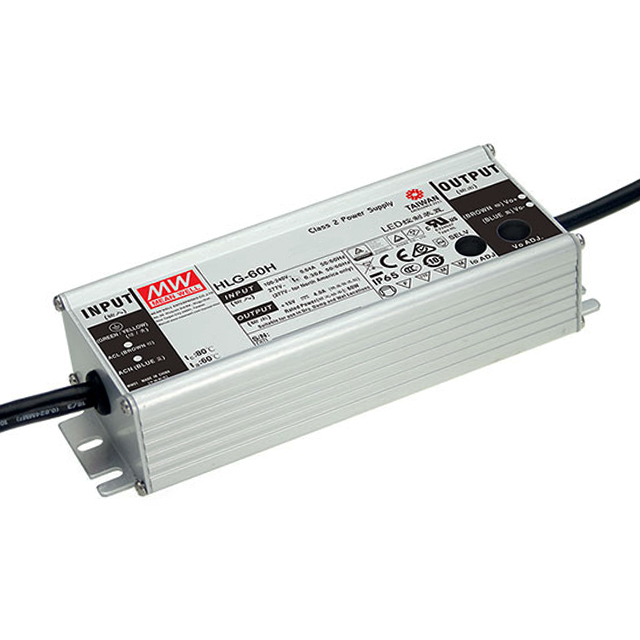

HLG-60H-54A

Active

MEAN WELL USA Inc.

LED DVR CC/CV AC/DC 49-58V 1.15A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HLG-60H-54A

Active

MEAN WELL USA Inc.

LED DVR CC/CV AC/DC 49-58V 1.15A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HLG-60H-54A

Approval Agency	CE, PSE, CCC, TUV, CB, UR, RCM, cURus
Current - Output (Max) [Max]	1.15 A
Efficiency	90.5 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Power (Watts)	62 W
Ratings	IP65
Size / Dimension [x]	5.8 "
Size / Dimension [x]	147.2 mm
Size / Dimension [y]	61.5 mm
Size / Dimension [y]	2.42 in
Size / Dimension [z]	36.8 mm
Size / Dimension [z]	1.45 in
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current, Voltage
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3750 V
Voltage - Output [Max]	58 V
Voltage - Output [Min]	49 V

HLG-60H Series

Part	Dimming	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Termination Style	Current - Output (Max) [Max]	Ratings	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Voltage - Output [Min]	Voltage - Output [Max]	Topology	Mounting Type	Approval Agency	Voltage - Input (Min) [Min]	Number of Outputs	Type	Power (Watts)	Features	Voltage - Input (Max) [Max]	Voltage - Output
MEAN WELL USA Inc. HLG-60H-36B	Analog PWM	5.8 "	147.2 mm	36.8 mm	61.5 mm	1.45 in	2.42 in	Wire Leads	1.7 A	IP67	90 %	-40 °C	80 C	3750 V	21.6 V	36 V	AC DC Converter	Chassis Mount	CB CCC CE cURus PSE RCM TUV UR	90 VAC	1	Constant Current Voltage	61 W	OCP OTP OVP SCP	305 VAC
MEAN WELL USA Inc. HLG-60H-C700A		5.8 "	147.2 mm	36 mm	61.5 mm	1.42 in	2.42 in	Wire Leads	700 mA	IP65	90.5 %	-40 °C	80 C	3750 V	50 V	100 VDC	AC DC Converter	Chassis Mount	CB CCC CE cURus PSE RCM TUV	90 VAC	1	Constant Current	70 W	OCP OTP OVP SCP	305 VAC
MEAN WELL USA Inc. HLG-60H-30		5.8 "	147.2 mm	36.8 mm	61.5 mm	1.45 in	2.42 in	Wire Leads	2 A	IP67	90 %	-40 °C	80 C	3750 V			AC DC Converter	Chassis Mount	CB CCC CE cURus PSE RCM TUV UR	90 VAC	1	Constant Current Voltage	60 W	OCP OTP OVP SCP	305 VAC
MEAN WELL USA Inc. HLG-60H-C350A		5.8 "	147.2 mm	36 mm	61.5 mm	1.42 in	2.42 in	Wire Leads	350 mA	IP65	91 %	-40 °C	80 C	3750 V	100 V	200 V	AC DC Converter	Chassis Mount	CB CCC CE cURus PSE RCM TUV	90 VAC	1	Constant Current	70 W	OCP OTP OVP SCP	305 VAC
MEAN WELL USA Inc. HLG-60H-36AB	Analog PWM	5.8 "	147.2 mm	36.8 mm	61.5 mm	1.45 in	2.42 in	Wire Leads	1.7 A	IP65	90 %	-40 °C	80 C	3750 V			AC DC Converter	Chassis Mount	CB CCC CE cURus EAC KC PSE RCM TUV	90 VAC	1	Constant Current Voltage	61 W	OCP OTP OVP SCP	305 VAC	36 V
MEAN WELL USA Inc. HLG-60H-54A		5.8 "	147.2 mm	36.8 mm	61.5 mm	1.45 in	2.42 in	Wire Leads	1.15 A	IP65	90.5 %	-40 °C	80 C	3750 V	49 V	58 V	AC DC Converter	Chassis Mount	CB CCC CE cURus PSE RCM TUV UR	90 VAC	1	Constant Current Voltage	62 W	OCP OTP OVP SCP	305 VAC
MEAN WELL USA Inc. HLG-60H-54AB		5.8 "	147.2 mm	36.8 mm	61.5 mm	1.45 in	2.42 in	Wire Leads	1.15 A	IP65	90.5 %	-40 °C	80 C	3750 V			AC DC Converter	Chassis Mount	CB CCC CE cURus EAC KC PSE RCM TUV	90 VAC	1	Constant Current Voltage	62 W	OCP OTP OVP SCP	305 VAC	54 V
MEAN WELL USA Inc. HLG-60H-30A		5.8 "	147.2 mm	36.8 mm	61.5 mm	1.45 in	2.42 in	Wire Leads	2 A	IP65	90 %	-40 °C	80 C	3750 V	27 V	33 V	AC DC Converter	Chassis Mount	CB CCC CE cURus PSE RCM TUV UR	90 VAC	1	Constant Current Voltage	60 W	OCP OTP OVP SCP	305 VAC
MEAN WELL USA Inc. HLG-60H-54B	Analog PWM	5.8 "	147.2 mm	36.8 mm	61.5 mm	1.45 in	2.42 in	Wire Leads	1.15 A	IP67	90.5 %	-40 °C	80 C	3750 V	32.4 V	54 V	AC DC Converter	Chassis Mount	CB CCC CE cURus PSE RCM TUV UR	90 VAC	1	Constant Current Voltage	62 W	OCP OTP OVP SCP	305 VAC
MEAN WELL USA Inc. HLG-60H-15A		5.8 "	147.2 mm	36.8 mm	61.5 mm	1.45 in	2.42 in	Wire Leads	4 A	IP65	87.5 %	-40 °C	80 C	3750 V	13.5 V	17 V	AC DC Converter	Chassis Mount	CB CCC CE cURus PSE RCM TUV UR	90 VAC	1	Constant Current Voltage	60 W	OCP OTP OVP SCP	305 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 35.00
		5	$ 33.30
		10	$ 31.80
		25	$ 30.90

Description

General part information

HLG-60H Series

1.15A 49 ~ 58V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
