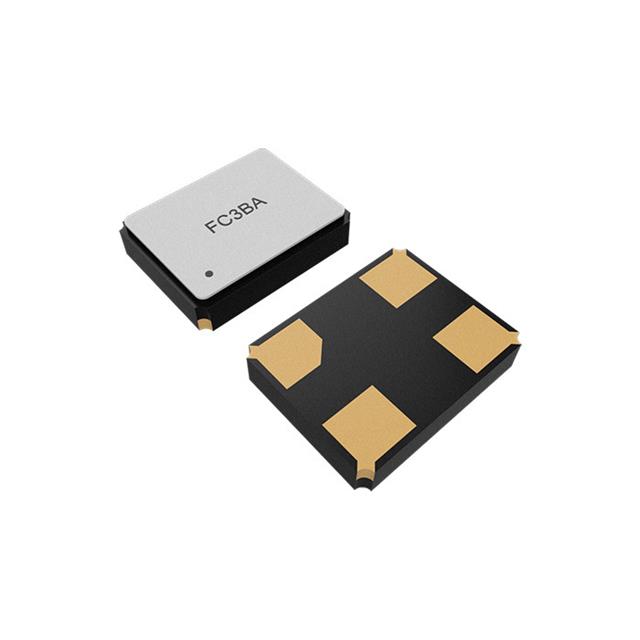

FC3BAEBGI12.0-T1
ActiveFox Electronics
CRYSTAL 12.000MHZ 12PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FC3BAEBGI12.0-T1
ActiveFox Electronics
CRYSTAL 12.000MHZ 12PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FC3BAEBGI12.0-T1 |
|---|---|
| ESR (Equivalent Series Resistance) | 80 Ohm |
| Frequency | 12 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) [Max] | 0.7 mm |
| Height - Seated (Max) [Max] | 0.028 in |
| Load Capacitance | 12 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.64 | |
| 10 | $ 0.53 | |||
| 50 | $ 0.48 | |||
| 100 | $ 0.42 | |||
| 500 | $ 0.40 | |||
| Digi-Reel® | 1 | $ 0.64 | ||
| 10 | $ 0.53 | |||
| 50 | $ 0.48 | |||
| 100 | $ 0.42 | |||
| 500 | $ 0.40 | |||
| Tape & Reel (TR) | 1000 | $ 0.34 | ||
| 3000 | $ 0.32 | |||
| 5000 | $ 0.31 | |||
| 10000 | $ 0.30 | |||
Description
General part information
FC3BAEBGI12.0-T1
12 MHz ±20ppm Crystal 12pF 80 Ohms 4-SMD, No Lead
