0345661503

Active

Molex

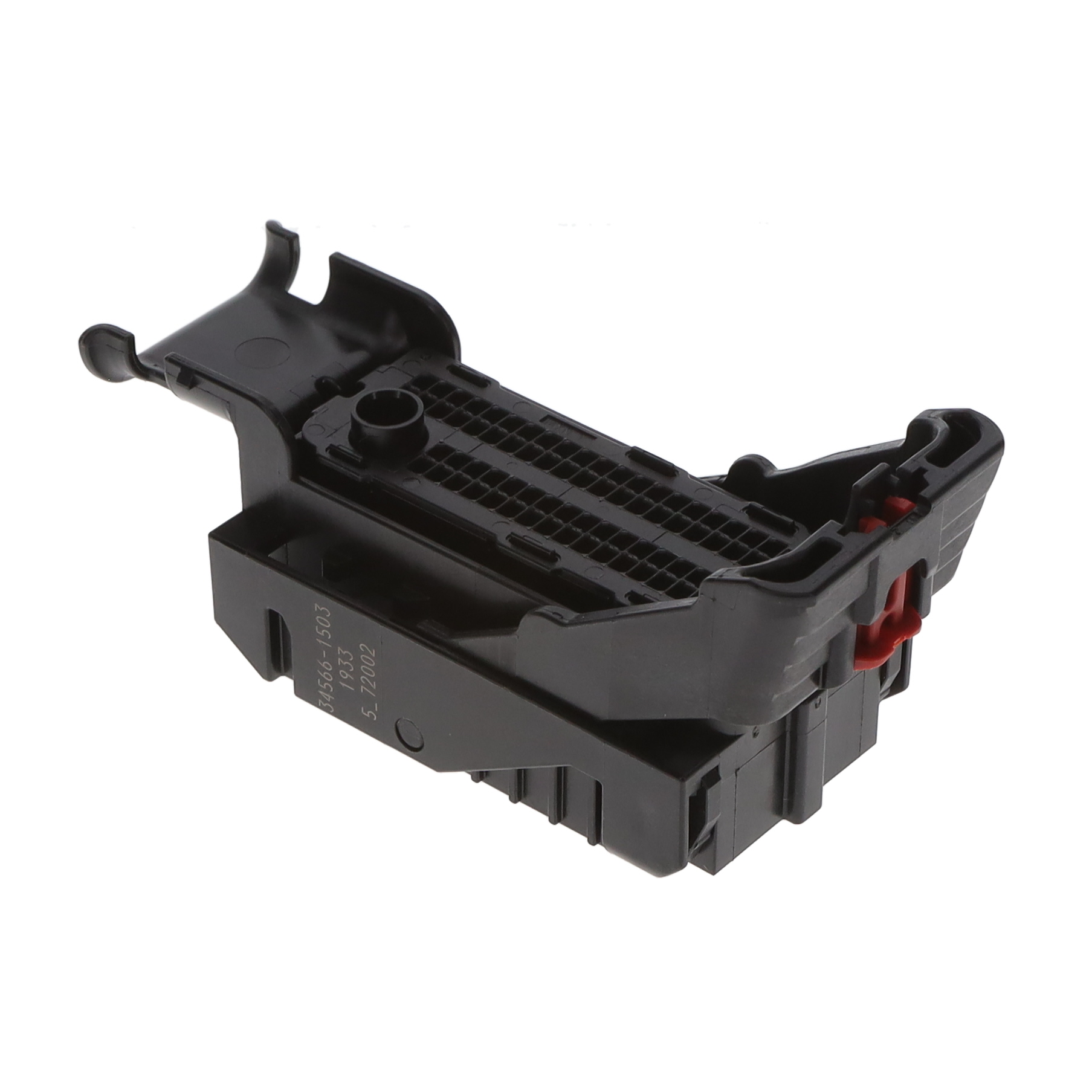

CONN RCPT HSG 73POS OPT9

Search across all available documentation for this part.

Active

Molex

CONN RCPT HSG 73POS OPT9

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Contact Type	Number of Positions	Color	Features	Pitch [x]	Pitch [x]	Connector Type	Contact Termination	Note
Molex 0345662003	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT) Glass Filled	125 °C	-40 °C	Lever Lock	Female Socket	80	Gray	Wire Guide	2.54 mm	0.1 in	Receptacle	Crimp
Molex 0345664533
Molex 0345661503	Free Hanging (In-Line)	Nylon Polyamide (PA)	125 °C	-40 °C	Lever Lock	Female Socket	73	Blue	Wire Guide			Receptacle	Crimp	Contacts Not Included
Molex 0345661303	Free Hanging (In-Line)	Nylon Polyamide (PA)	125 °C	-40 °C	Lever Lock	Female Socket	73	Black	Wire Guide			Receptacle	Crimp	Contacts Not Included
Molex 0345660203	Free Hanging (In-Line)	Nylon Polyamide (PA)	125 °C	-40 °C	Lever Lock	Female Socket	73	Gray	Wire Guide			Receptacle	Crimp	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

73 Rectangular Connectors - Housings Receptacle Blue

Technical documentation and resources

No documents available
