1075806

Active

SICK, Inc.

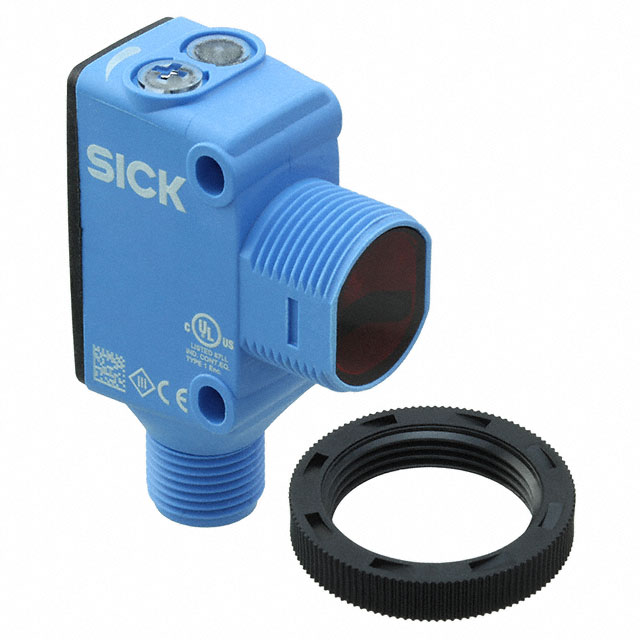

SENSOR 150MM PNP LO/DO M12

Search across all available documentation for this part.

Active

SICK, Inc.

SENSOR 150MM PNP LO/DO M12

Technical Specifications

Parameters and characteristics for this part

Specification	1075806

Connection Method	Connector, 4POS, M12
Ingress Protection	IP67, IP69K
Light Source	Red LED
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-40 °C
Output Configuration	PNP - Dark-ON/Light-ON - Selectable
Response Time	500 µs
Sensing Distance [Max]	5.906 "
Sensing Distance [Max]	15 cm
Sensing Distance [Min]	5 mm
Sensing Distance [Min]	0.197 in
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Output Configuration	Ingress Protection	Response Time	Voltage - Supply [Max]	Voltage - Supply [Min]	Light Source	Light Source	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Connection Method	Sensing Method	Cable Length	Cable Length
SICK, Inc. 1080327	NPN/PNP	IP67	500 µs	30 VDC	10 VDC	631 nm	Red	65 °C	-40 °C	300 mm	11.811 in	5 mm	0.197 in	Connector M12	Proximity
SICK, Inc. 1071044	PNP	IP67	500 µs	30 VDC	10 VDC	631 nm	Red	65 °C	-40 °C	300 mm	11.811 in	5 mm	0.197 in	Connector M12	Proximity
SICK, Inc. 1074590	PNP	IP67	500 µs	30 VDC	10 VDC	631 nm	Red	65 °C	-40 °C	300 mm	11.811 in	5 mm	0.197 in	Cable with Connector	Proximity	78.74 in	2 m
SICK, Inc. 1078491	PNP	IP67	500 µs	30 VDC	10 VDC	631 nm	Red	65 °C	-40 °C	300 mm	11.811 in	5 mm	0.197 in	Connector M8	Proximity
SICK, Inc. 1075806	PNP - Dark-ON/Light-ON - Selectable	IP67 IP69K	500 µs	30 VDC	10 VDC		Red LED	65 °C	-40 °C	15 cm	5.906 "	5 mm	0.197 in	4POS Connector M12
SICK, Inc. 1075808	PNP	IP67 IP69K	500 µs	30 VDC	10 VDC	631 nm	Red	65 °C	-40 °C	300 mm	11.811 in	5 mm	0.197 in	Cable	Proximity	78.74 in	2 m
SICK, Inc. 1075807	NPN	IP67	500 µs	30 VDC	10 VDC	631 nm	Red	65 °C	-40 °C	300 mm	11.811 in	5 mm	0.197 in	Connector M12	Proximity
SICK, Inc. 1075809	NPN	IP67	500 µs	30 VDC	10 VDC	631 nm	Red	65 °C	-40 °C	300 mm	11.811 in	5 mm	0.197 in	Cable	Proximity	78.74 in	2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optical Sensor 0.197" ~ 5.906" (5mm ~ 150mm) PNP - Dark-ON/Light-ON - Selectable

Technical documentation and resources
