10116658-052FSLF

Active

Amphenol ICC (FCI)

CONN SKT SODIMM 200POS SMD

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN SKT SODIMM 200POS SMD

Technical Specifications

Parameters and characteristics for this part

Part	Connector Style	Memory Type	Features	Height [diameter]	Height [diameter]	Card Thickness	Card Thickness	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Color	Insertion Angle	Mounting Feature	Contact Finish	Contact Finish Thickness
Amphenol ICC (FCI) 10116658-052TSLF	SODIMM	DDR2 SDRAM	Board Guide	0.205 in	5.2 mm	0.039 in	1 mm	0.3 Ám	11.8 Áin	Surface Mount	Black	30 °	Normal Standard - Top	Gold
Amphenol ICC (FCI) 10116658-152FSLF	SODIMM	DDR2 SDRAM	Latches	0.205 in	5.2 mm	0.039 in	1 mm			Surface Mount	Black	30 °	Normal Standard - Top	Gold	Flash
Amphenol ICC (FCI) 10116658-052FSLF	SODIMM	DDR2 SDRAM	Board Guide Latches	0.205 in	5.2 mm	0.039 in	1 mm			Surface Mount	Black	30 °	Normal Standard - Top	Gold	Flash
Amphenol ICC (FCI) 10116658-352ASLF	SODIMM	DDR2 SDRAM		0.205 in	5.2 mm	0.039 in	1 mm	0.76 Ám	30 Áin	Surface Mount	Black	30 °	Normal Standard - Top	Gold
Amphenol ICC (FCI) 10116658-052ASRLF	SODIMM	DDR2 SDRAM	Board Guide	0.205 in	5.2 mm	0.039 in	1 mm	0.76 Ám	30 Áin	Surface Mount	Black	30 °	Normal Standard - Top	Gold
Amphenol ICC (FCI) 10116658-252ASRLF	SODIMM	DDR2 SDRAM	Board Guide	0.205 in	5.2 mm	0.039 in	1 mm	0.76 Ám	30 Áin	Surface Mount	Black	30 °	Normal Standard - Top	Gold
Amphenol ICC (FCI) 10116658-252TSLF	SODIMM	DDR2 SDRAM	Board Guide	0.205 in	5.2 mm	0.039 in	1 mm	0.3 Ám	11.8 Áin	Surface Mount	Black	30 °	Normal Standard - Top	Gold
Amphenol ICC (FCI) 10116658-052FSRLF	SODIMM	DDR2 SDRAM		0.205 in	5.2 mm	0.039 in	1 mm			Surface Mount	Black	30 °	Normal Standard - Top	Gold	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

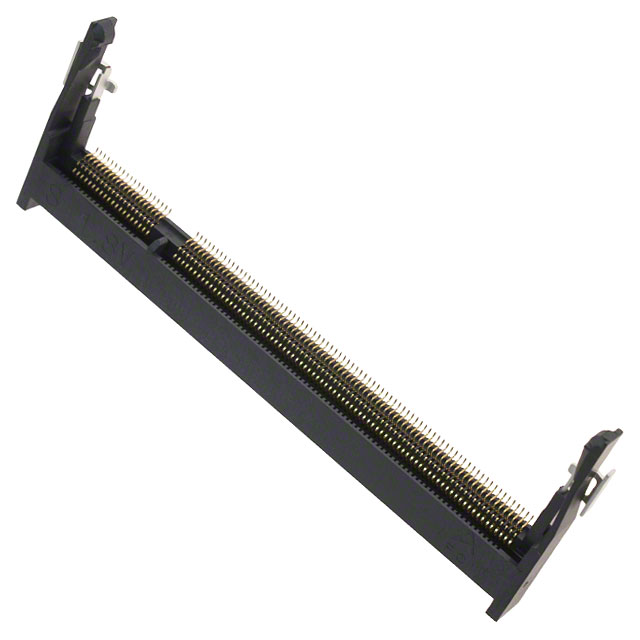

200 Position SODIMM DDR2 SDRAM Socket Surface Mount

Technical documentation and resources
