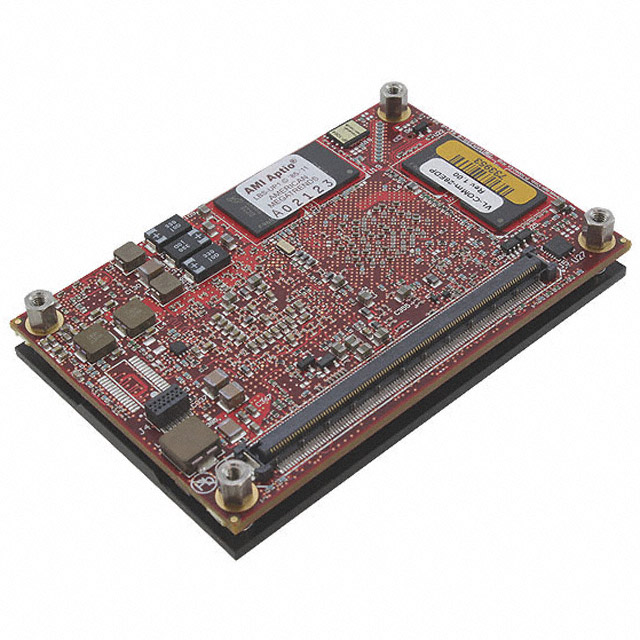

VL-COMM-26EDP

Obsolete

VersaLogic Corporation

SBC 1.6GHZ 1 CORE 2GB/2GB RAM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VL-COMM-26EDP

Obsolete

VersaLogic Corporation

SBC 1.6GHZ 1 CORE 2GB/2GB RAM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VL-COMM-26EDP

Cooling Type	Heat Plate
Core Processor	Intel Atom E680T
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps
Form Factor	COM Express mini (Type 10)
Number of Cores	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	9.5 W
RAM Capacity/Installed	2 GB
Size / Dimension [x]	55 mm
Size / Dimension [x]	2.17 "
Size / Dimension [y]	3.31 "
Size / Dimension [y]	84 mm
Speed	1.6 GHz
Storage Interface	SATA3 (2), microSD
USB	USB 2.0 (7)
Video Outputs	LVDS, DVI, VGA
Watchdog Timer	True

VL-COMM Series

Part	Number of Cores	Video Outputs	Storage Interface	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Core Processor	Cooling Type	RAM Capacity/Installed	Ethernet	Power (Watts)	USB [custom]	Form Factor	Operating Temperature [Max]	Operating Temperature [Min]	Speed	RAM Capacity/Installed	USB
VersaLogic Corporation VL-COMM-33EA	1	DVI LVDS	microSD SATA3 (2)	55 mm	2.17 "	3.31 "	84 mm	Intel Atom E3815	Heat Plate	2 GB	10 Mbps 100 Mbps 1000 Mbps	3.5 W	USB 2.0 (6) USB 3.0 (1)	COM Express mini (Type 10)	85 °C	-40 °C	1.46 GHz
VersaLogic Corporation VL-COMM-26EBK	1	DVI LVDS VGA	microSD SATA3 (2)	55 mm	2.17 "	3.31 "	84 mm		Heat Sink		10 Mbps 100 Mbps 1000 Mbps	8.7 W		COM Express mini (Type 10)	85 °C	-40 °C	1 GHz	1GB/1GB	USB 2.0 (7)
VersaLogic Corporation VL-COMM-26EDP	1	DVI LVDS VGA	microSD SATA3 (2)	55 mm	2.17 "	3.31 "	84 mm	Intel Atom E680T	Heat Plate	2 GB	10 Mbps 100 Mbps 1000 Mbps	9.5 W		COM Express mini (Type 10)	85 °C	-40 °C	1.6 GHz		USB 2.0 (7)
VersaLogic Corporation VL-COMM-33EB	2	DVI LVDS	microSD SATA3 (2)	55 mm	2.17 "	3.31 "	84 mm	Intel Atom E3827	Heat Plate	2 GB	10 Mbps 100 Mbps 1000 Mbps	5.6 W	USB 2.0 (6) USB 3.0 (1)	COM Express mini (Type 10)	85 °C	-40 °C	1.75 GHz
VersaLogic Corporation VL-COMM-33ED	4	DVI LVDS	microSD SATA3 (2)	55 mm	2.17 "	3.31 "	84 mm	Intel Atom E3845	Heat Plate		10 Mbps 100 Mbps 1000 Mbps	7.3 W	USB 2.0 (6) USB 3.0 (1)	COM Express mini (Type 10)	85 °C	-40 °C	1.91 GHz
VersaLogic Corporation VL-COMM-26EBP	1	DVI LVDS VGA	microSD SATA3 (2)	55 mm	2.17 "	3.31 "	84 mm		Heat Plate		10 Mbps 100 Mbps 1000 Mbps	8.7 W		COM Express mini (Type 10)	85 °C	-40 °C	1 GHz	1GB/1GB	USB 2.0 (7)
VersaLogic Corporation VL-COMM-26EAK	1	DVI LVDS VGA	microSD SATA3 (2)	55 mm	2.17 "	3.31 "	84 mm	Intel Atom E620T	Heat Sink	512 MB	10 Mbps 100 Mbps 1000 Mbps	7.6 W		COM Express mini (Type 10)	85 °C	-40 °C	600 MHz		USB 2.0 (7)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1064.06

Description

General part information

VL-COMM Series

Single Board Computer 1.6GHz 1 Core 2GB/2GB RAM Intel Atom E680T
