1415118

Active

Phoenix Contact

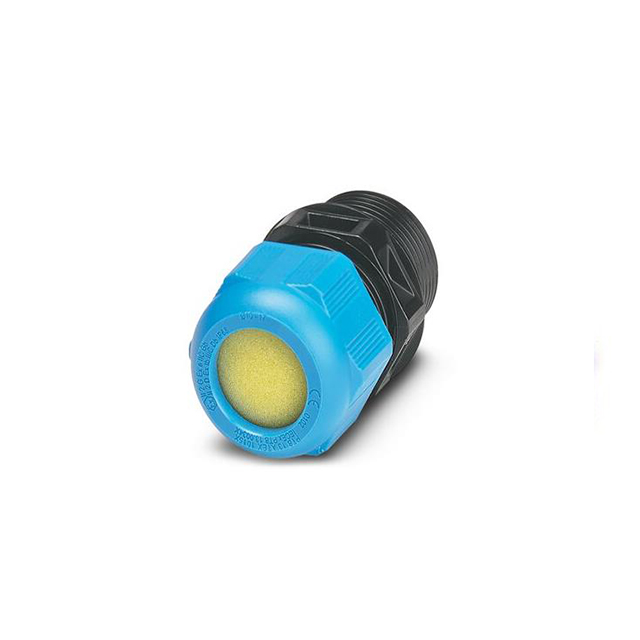

CABLE GLAND 10-16.99MM M25

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 10-16.99MM M25

Technical Specifications

Parameters and characteristics for this part

Specification	1415118

Color	Black, Blue
Includes	Seal
Ingress Protection	IP66/IP68
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	16.99 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.669 in
Outside Cable Diameter (Min) [Min] [diameter]	0.394 in
Outside Cable Diameter (Min) [Min] [diameter]	10 mm
Thread Length	0.591 in
Thread Length	15 mm
Thread Size	M25
Type	Cable Gland

Part	Material	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Length	Thread Length	Color	Ingress Protection	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]
Phoenix Contact 1415118	Polyamide (PA) Nylon	-40 °C	75 ░C	Seal	M25	16.99 mm	0.669 in	0.591 in	15 mm	Black Blue	IP66/IP68	Cable Gland	0.394 in	10 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 4.80

General part information

Cable Gland Polyamide (PA), Nylon M25 Black, Blue
