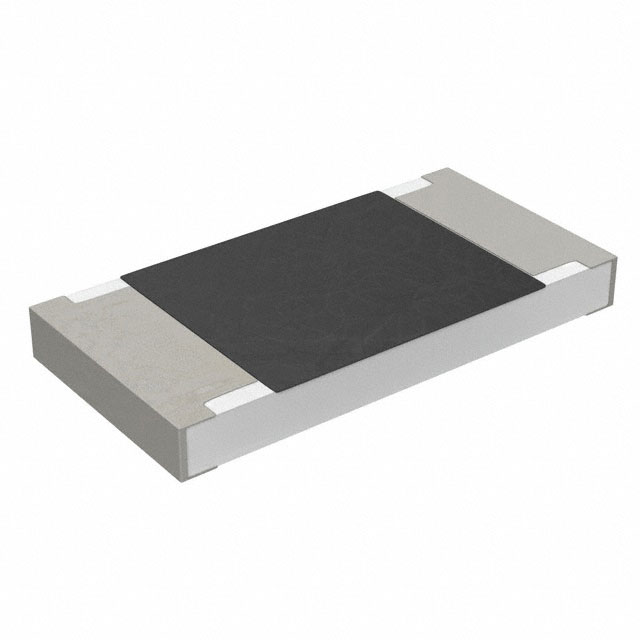

RNCF2512TKY100R

Active

Stackpole Electronics Inc

RES SMD 100 OHM 0.01% 1/2W 2512

Search across all available documentation for this part.

Active

Stackpole Electronics Inc

RES SMD 100 OHM 0.01% 1/2W 2512

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ratings	Package / Case	Package / Case	Composition	Tolerance	Resistance	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Temperature Coefficient	Power (Watts)	Power (Watts)	Number of Terminations
Stackpole Electronics Inc RNCF2512TKY49K9	2512	155 °C	-55 °C	0.026 in	0.65 mm	AEC-Q200	6432 Metric	2512	Thin Film	0.01 %	49900 Ohms	Automotive AEC-Q200	6.3 mm	0.122 in	3.1 mm	0.248 in	5 ppm/°C	0.5 W	0.5 W	2
Stackpole Electronics Inc RNCF2512TKY100R	2512	155 °C	-55 °C	0.026 in	0.65 mm	AEC-Q200	6432 Metric	2512	Thin Film	0.01 %	100 Ohms	Automotive AEC-Q200	6.3 mm	0.122 in	3.1 mm	0.248 in	5 ppm/°C	0.5 W	0.5 W	2
Stackpole Electronics Inc RNCF2512TTY249R	2512	155 °C	-55 °C	0.026 in	0.65 mm	AEC-Q200	6432 Metric	2512	Thin Film	0.01 %	249 Ohms	Automotive AEC-Q200	6.3 mm	0.122 in	3.1 mm	0.248 in	5 ppm/°C	0.5 W	0.5 W	2
Stackpole Electronics Inc RNCF2512TTE40R2	2512	155 °C	-55 °C	0.026 in	0.65 mm	AEC-Q200	6432 Metric	2512	Thin Film	0.01 %	40.2 Ohms	Automotive AEC-Q200	6.3 mm	0.122 in	3.1 mm	0.248 in	25 ppm/°C	0.75 W	0.75 W	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 Ohms ±0.01% 0.5W, 1/2W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200 Thin Film
