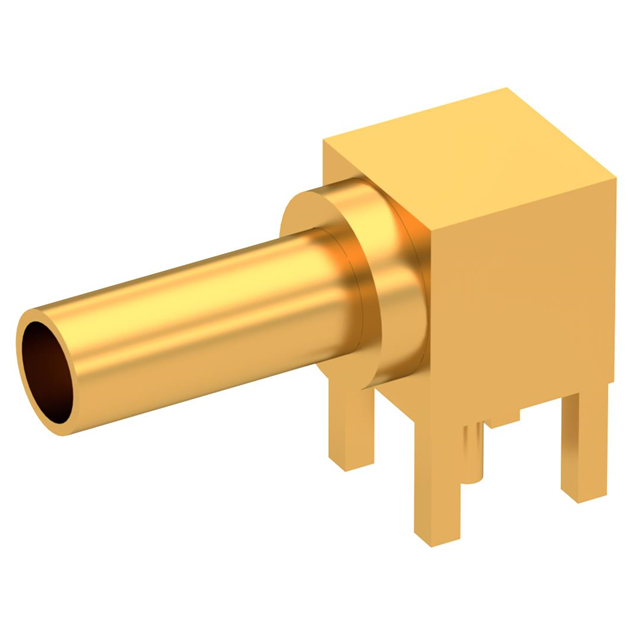

8145-1521-002

Active

Radiall USA, Inc.

TERMINATIONS / RIGHT ANGLE TERMI

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TERMINATIONS / RIGHT ANGLE TERMI

Technical Specifications

Parameters and characteristics for this part

Specification	8145-1521-002

Body Finish	Gold
Body Material	Brass
Contact Finish	Gold
Dielectric Material	Polytetrafluoroethylene (PTFE)
Mounting Type	Through Hole, Right Angle

Part	Frequency - Max [Max]	Impedance	Body Finish	Body Material	Contact Finish	Dielectric Material	Mounting Type
Radiall USA, Inc. 8145-1521-019	6000 MHz	50 Ohms	Gold	Brass	Gold	Polytetrafluoroethylene (PTFE)	Through Hole Right Angle
Radiall USA, Inc. 8145-1521-002			Gold	Brass	Gold	Polytetrafluoroethylene (PTFE)	Through Hole Right Angle
Radiall USA, Inc. 8145-1521-003			Gold	Brass	Gold	Polytetrafluoroethylene (PTFE)	Through Hole Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 16.31

General part information

Terminator Coax Connector

Technical documentation and resources

No documents available
