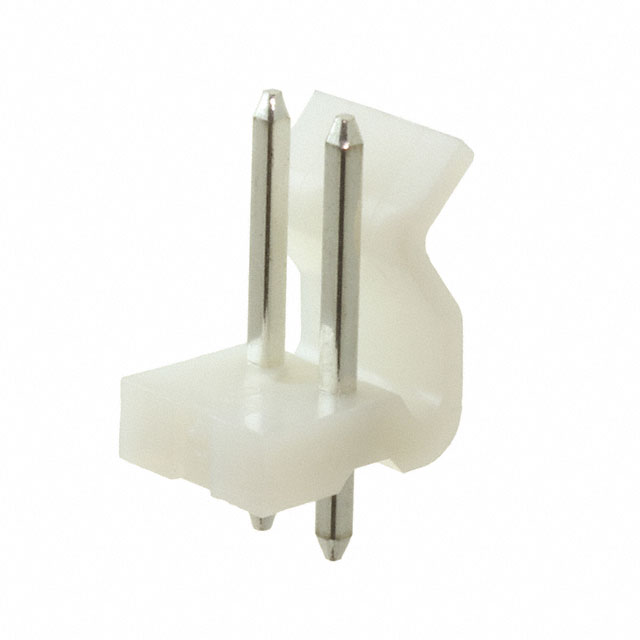

LHB-02-SA1

Active

Adam Tech

CONN WIRE TO BOARD HDR 2 POS 3.96MM SOLDER ST THRU-HOLE BAG

Search across all available documentation for this part.

Active

Adam Tech

CONN WIRE TO BOARD HDR 2 POS 3.96MM SOLDER ST THRU-HOLE BAG

Technical Specifications

Parameters and characteristics for this part

Specification	LHB-02-SA1

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	1.04 mm
Contact Length - Mating	0.041 in
Contact Length - Post	0.145 in
Contact Length - Post	3.68 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5 A
Fastening Type	Friction Lock
Insulation Color	White
Insulation Height	12.8 mm
Insulation Height	0.504 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Overall Contact Length	0.69 in
Overall Contact Length	17.53 mm
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

Part	Number of Positions Loaded	Connector Type	Contact Length - Mating	Contact Length - Mating	Fastening Type	Insulation Color	Voltage Rating	Mounting Type	Style	Insulation Material	Material Flammability Rating	Contact Type	Contact Finish - Post	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Number of Positions	Contact Length - Post	Contact Length - Post	Number of Rows	Termination	Contact Material	Contact Shape	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height
Adam Tech LHB-02-SA1	All	Header	1.04 mm	0.041 in	Friction Lock	White	250 VAC	Through Hole	Board to Cable/Wire	Polyamide (PA66) Nylon 6/6	UL94 V-2	Male Pin	Tin	Shrouded - 1 Wall	-25 °C	85 °C	5 A	2	0.145 in	3.68 mm	1	Solder	Brass	Square	0.156 in	3.96 mm	0.69 in	17.53 mm	12.8 mm	0.504 in
