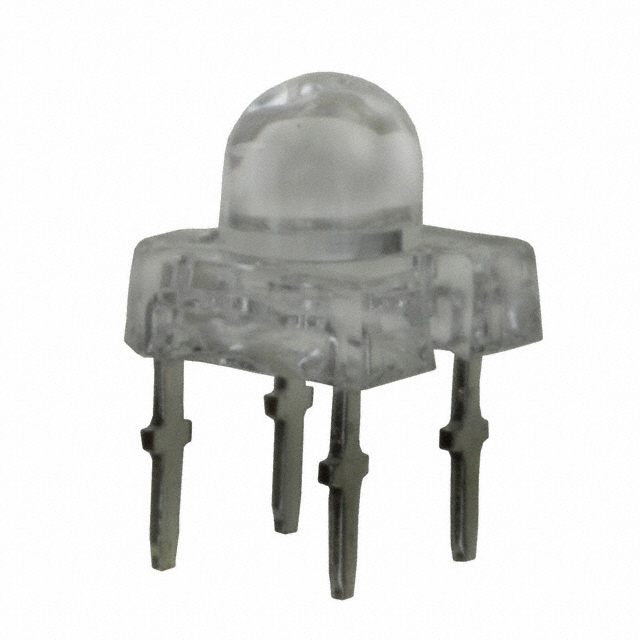

R20GRN-V-3045
ObsoleteBivar Inc.
LED GREEN CLEAR T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R20GRN-V-3045
ObsoleteBivar Inc.
LED GREEN CLEAR T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R20GRN-V-3045 |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 8.6 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 5.3 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 8000 mcd |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP |
| Package / Case | 0.2 in |
| Package / Case | 0.2 in |
| Size / Dimension [x] | 7.6 mm |
| Size / Dimension [y] | 7.6 mm |
| Viewing Angle | 30 °, 45 ° |
| Voltage - Forward (Vf) (Typ) | 3.4 V |
| Wavelength - Dominant [custom] | 521 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
R20GRN-V-3045 Series
Green 521nm LED Indication - Discrete 3.4V 4-DIP (0.200", 5.08mm)
