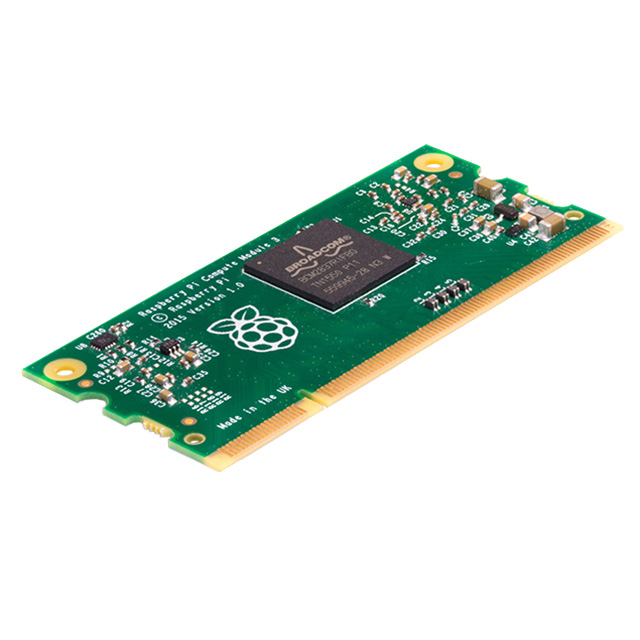

SC0029

Raspberry Pi

SBC 1.2GHZ 4 CORE 1GB RAM

Search across all available documentation for this part.

Raspberry Pi

SBC 1.2GHZ 4 CORE 1GB RAM

Technical Specifications

Parameters and characteristics for this part

Part	Expansion Site/Bus	Digital I/O Lines	Storage Interface	Speed	Core Processor	Number of Cores	Operating Temperature [Min]	Operating Temperature [Max]	USB	RAM Capacity/Installed	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Video Outputs
Raspberry Pi CM3 DEV KIT	I2C NAND SPI UART	48	eMMC SD	1.2 GHz	Broadcom BCM2837 ARM Cortex-A53	4	-25 °C	80 C	USB 2.0 (1)	1 GB	1.22 "	31 mm	2.661 in	67.6 mm	CSI DPI DSI HDMI
Raspberry Pi SC0029	I2C NAND SPI UART	48	eMMC SD	1.2 GHz	Broadcom BCM2837 ARM Cortex-A53	4	-25 °C	80 C	USB 2.0 (1)	1 GB	1.22 "	31 mm	2.661 in	67.6 mm	CSI DPI DSI HDMI
Raspberry Pi CM3+ DEV. KIT	I2C NAND SPI UART	48	eMMC SD	1.2 GHz	Broadcom BCM2837 ARM Cortex-A53	4	-25 °C	80 C	USB 2.0 (1)	1 GB	1.22 "	31 mm	2.661 in	67.6 mm	CSI DPI DSI HDMI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	150	$ 29.69

General part information

Single Board Computer 1.2GHz 4 Core 1GB RAM Broadcom BCM2837 ARM Cortex-A53
