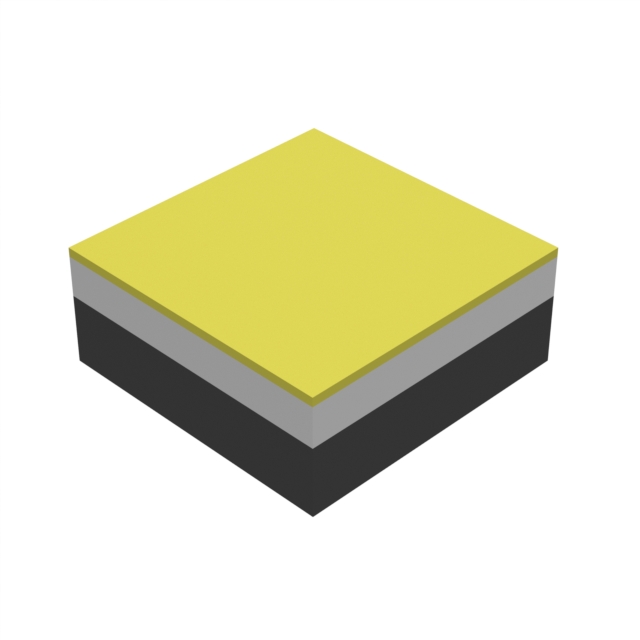

XD16AWT-H0-0000-00000HK50

Active

Cree LED

LED XLAMP COOL WHITE 6200K 0606

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XD16AWT-H0-0000-00000HK50

Active

Cree LED

LED XLAMP COOL WHITE 6200K 0606

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XD16AWT-H0-0000-00000HK50

Color	Cool, White
CRI (Color Rendering Index)	80
Current - Max [Max]	2 A
Current - Test	350 mA
Flux @ 85°C, Current - Test	160 lm
Height - Seated (Max) [Max] [z]	0.035 "
Height - Seated (Max) [Max] [z]	0.88 mm
Mounting Type	Surface Mount
Package / Case	0606, 1616 Metric
Size / Dimension [x]	1.6 mm
Size / Dimension [x]	0.063 in
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Supplier Device Package	0606
Thermal Resistance of Package [custom]	6 °C/W
Viewing Angle	135 °
Voltage - Forward (Vf) (Typ)	2.73 V

XD16AWT Series

...

Part	Thermal Resistance of Package [custom]	Supplier Device Package	Mounting Type	Current - Test	Current - Max [Max]	Viewing Angle	Voltage - Forward (Vf) (Typ)	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Lumens/Watt @ Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test [Min]	Flux @ 85°C, Current - Test	CRI (Color Rendering Index)	CCT (K)	Thermal Resistance of Package [custom]
Cree LED XD16AWT-P0-0000-000000GE7	1.8 °C/W	0606	Surface Mount	350 mA	2 A	120 °	2.73 V	Warm White	0.063 in	1.6 mm	0.063 in	1.6 mm	141 lm/W	0.033 "	0.83 mm	0606 1616 Metric	139 lm	130 lm
Cree LED XD16AWT-P0-0000-00000UEF7	1.8 °C/W	0606	Surface Mount	350 mA	2 A	120 °	2.73 V	Warm White	0.063 in	1.6 mm	0.063 in	1.6 mm	123 lm/W	0.033 "	0.83 mm	0606 1616 Metric	122 lm	114 lm	118 lm	90	3250 K
Cree LED XD16AWT-H0-0000-00000HK50		0606	Surface Mount	350 mA	2 A	135 °	2.73 V	Cool White	0.063 in	1.6 mm	0.063 in	1.6 mm		0.035 "	0.88 mm	0606 1616 Metric			160 lm	80		6 °C/W
Cree LED XD16AWT-H0-0000-000000GF7		0606	Surface Mount	350 mA	2 A	135 °	2.73 V	Warm White	0.063 in	1.6 mm	0.063 in	1.6 mm	141 lm/W	0.035 "	0.88 mm	0606 1616 Metric	139 lm	130 lm			3200 K	6 °C/W
Cree LED XD16AWT-P0-0000-00000BKE3	1.8 °C/W	0606	Surface Mount	350 mA	2 A	120 °	2.73 V	Cool White	0.063 in	1.6 mm	0.063 in	1.6 mm		0.033 "	0.83 mm	0606 1616 Metric			160 lm	70	5000 K
Cree LED XD16AWT-H0-0000-00000HJF6		0606	Surface Mount	350 mA	2 A	135 °	2.73 V	Neutral White	0.063 in	1.6 mm	0.063 in	1.6 mm	159 lm/W	0.035 "	0.88 mm	0606 1616 Metric	156 lm	148 lm	152 lm	80	3700 K	6 °C/W
Cree LED XD16AWT-P0-0000-000000HDT	1.8 °C/W	0606	Surface Mount	350 mA	2 A	120 °	2.73 V	Cool White	0.063 in	1.6 mm	0.063 in	1.6 mm	151 lm/W	0.033 "	0.83 mm	0606 1616 Metric	148 lm	139 lm	144 lm		7000 K
Cree LED XD16AWT-H0-0000-000000KE3		0606	Surface Mount	350 mA	2 A	135 °	2.73 V	Cool White	0.063 in	1.6 mm	0.063 in	1.6 mm		0.035 "	0.88 mm	0606 1616 Metric			160 lm		5000 K	6 °C/W
Cree LED XD16AWT-P0-0000-000000KE4	1.8 °C/W	0606	Surface Mount	350 mA	2 A	120 °	2.73 V	Neutral White	0.063 in	1.6 mm	0.063 in	1.6 mm		0.033 "	0.83 mm	0606 1616 Metric			160 lm
Cree LED XD16AWT-P0-0000-00000BHDT	1.8 °C/W	0606	Surface Mount	350 mA	2 A	120 °	2.73 V	Cool White	0.063 in	1.6 mm	0.063 in	1.6 mm	151 lm/W	0.033 "	0.83 mm	0606 1616 Metric	148 lm	139 lm	144 lm	70	7000 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 1.01

Description

General part information

XD16AWT Series

LED Lighting XLamp® XD16 White, Cool 6200K 2.73V 350mA 135° 0606 (1616 Metric)
