SC24W-3S25
ActiveSouriau-Sunbank by Eaton

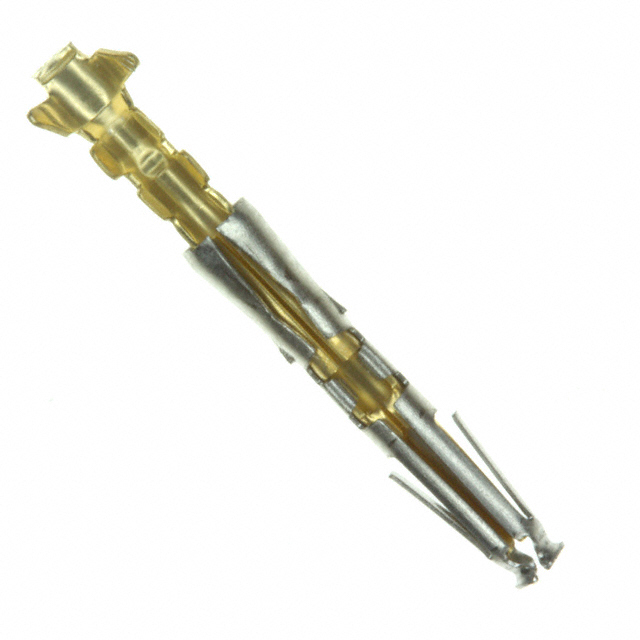

CONTACT SOCKET 24-26AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SC24W-3S25
ActiveSouriau-Sunbank by Eaton
CONTACT SOCKET 24-26AWG CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SC24W-3S25 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.75 µm |
| Contact Finish Thickness | 29.5 µin |
| Contact Material | Copper Alloy |
| Contact Size | 20 |
| Contact Termination | Crimp |
| Contact Type | Socket |
| Features | Insulation Support |
| Termination Finish | Gold |
| Type | Stamped, Signal |
| Wire Gauge or Range - AWG [Max] | 26 AWG |
| Wire Gauge or Range - AWG [Min] | 24 AWG |
| Wire Gauge or Range - mm² [Max] | 0.25 mm² |
| Wire Gauge or Range - mm² [Min] | 0.12 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.25 | |
| 10 | $ 0.95 | |||
| 25 | $ 0.86 | |||
| 50 | $ 0.79 | |||
| 100 | $ 0.73 | |||
| 250 | $ 0.66 | |||
| 500 | $ 0.62 | |||
| 1000 | $ 0.57 | |||
| Tape & Reel (TR) | 3000 | $ 0.51 | ||
| 6000 | $ 0.48 | |||
| 9000 | $ 0.46 | |||
| 15000 | $ 0.44 | |||
| 21000 | $ 0.44 | |||
Description
General part information
SC24W Series
Socket Contact 24-26 AWG Size 20 Crimp Gold
