ED555/11DS
ActiveOn Shore Technology Inc.

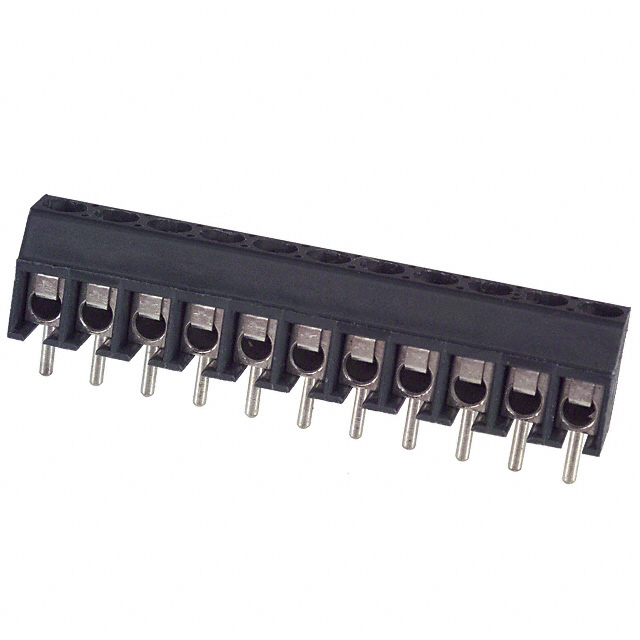

TERM BLK 11P SIDE ENT 3.5MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
ED555/11DS
ActiveOn Shore Technology Inc.
TERM BLK 11P SIDE ENT 3.5MM PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ED555/11DS |
|---|---|
| Clamp Material - Plating | Stainless, Steel |
| Color | Gray |
| Contact Material - Plating [custom] | Brass |
| Current | 6 A |
| Housing Material | Polyamide (PA), Nylon |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 3.5 mm |
| Pitch [x] | 0.138 in |
| Positions Per Level | 11 |
| Screw Thread | M2 |
| Torque - Screw | 0.4 Nm |
| Torque - Screw | 3.5 Lb-In |
| Voltage | 150 V |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 16 AWG |
| Wire Termination | Screw - Leaf Spring, Wire Guard |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.78 | |
| 10 | $ 2.88 | |||
| 25 | $ 2.70 | |||
| 50 | $ 2.40 | |||
| 100 | $ 2.35 | |||
| 300 | $ 2.16 | |||
| 500 | $ 1.95 | |||
| 1000 | $ 1.73 | |||
| 5000 | $ 1.63 | |||
Description
General part information
ED555 Series
11 Position Wire to Board Terminal Block Horizontal with Board 0.138" (3.50mm) Through Hole
