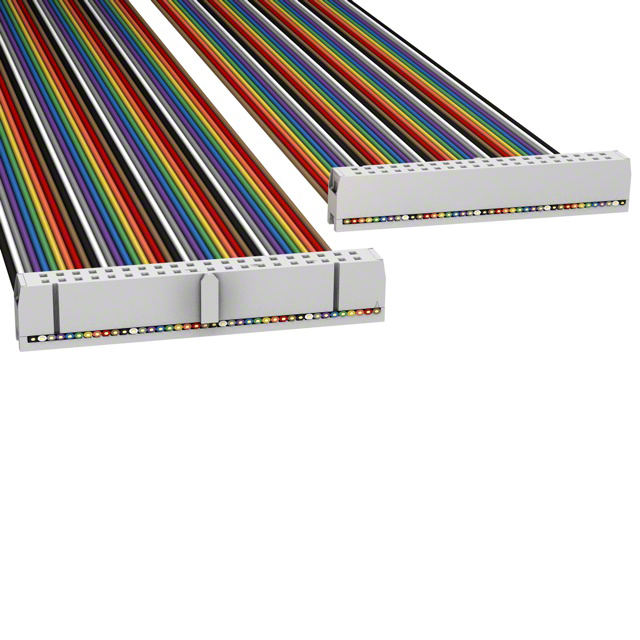

H3CCS-4006M
ActiveAssmann WSW Components
IDC CBL - HHKC40S/AE40M/HHKC40S
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H3CCS-4006M
ActiveAssmann WSW Components
IDC CBL - HHKC40S/AE40M/HHKC40S
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H3CCS-4006M |
|---|---|
| Cable Termination | IDC |
| Color | Ribbon, Multiple |
| Connector Type | Socket to Socket |
| Contact Finish | Tin |
| Features | Polarizing Key |
| Length | 152.4 mm |
| Length | 6 " |
| Length | 0.5 ' |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.26 | |
| 10 | $ 1.97 | |||
| 25 | $ 1.88 | |||
| 50 | $ 1.84 | |||
| 100 | $ 1.76 | |||
| 250 | $ 1.59 | |||
| 500 | $ 1.46 | |||
| 1000 | $ 1.25 | |||
| 2500 | $ 1.17 | |||
Description
General part information
H3CCS-40 Series
40 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
