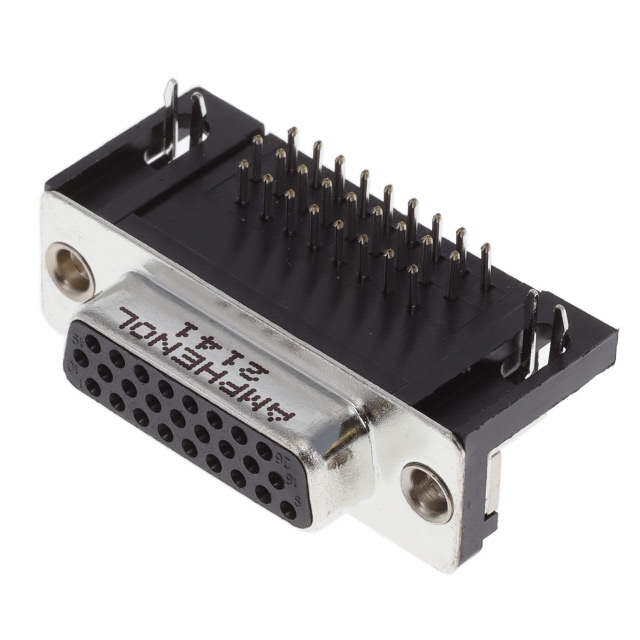

L77HDA26SD1CH4R
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HD RCPT 26P R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L77HDA26SD1CH4R
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HD RCPT 26P R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L77HDA26SD1CH4R |
|---|---|
| Backset Spacing | 8.89 mm |
| Backset Spacing | 0.35 in |
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Features | Board Lock, Grounding Tabs |
| Flange Feature | Board Side, 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 2 |
| Shell Size, Connector Layout | (DA, A) High Density |
| Termination | Solder |
| Voltage Rating | 250 VDC |
L77HDA26 Series
| Part | Voltage Rating | Connector Style | Contact Material | Mounting Type | Number of Positions | Contact Finish | Contact Type | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Dielectric Material | Connector Type | Current Rating (Amps) | Number of Rows | Flange Feature | Shell Size, Connector Layout | Shell Size, Connector Layout | Contact Finish Thickness | Termination | Features | Backset Spacing | Backset Spacing | Color | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (Commercial Products) | 250 VDC | D-Sub High Density | Phosphor Bronze | Free Hanging (In-Line) | 26 | Gold | Signal | UL94 V-0 | 155 °C | -55 °C | Stamped | Thermoplastic Glass Filled | Receptacle Female Sockets | 3 A | 3 | Female Screwlock (4-40) Mating Side | 2 | (DA A) High Density | Flash | |||||||
Amphenol ICC (Commercial Products) | 250 VDC | D-Sub High Density | Brass | Through Hole Right Angle | 26 | Gold | Signal | UL94 V-0 | 105 ░C | -55 °C | Stamped | Thermoplastic Glass Filled | Receptacle Female Sockets | 3 A | 3 | Board Side (M3) | 2 | (DA A) High Density | Flash | Solder | Board Lock Grounding Tabs | 8.89 mm | 0.35 in | Black | ||
Amphenol ICC (Commercial Products) | 250 VDC | D-Sub High Density | Brass | Through Hole | 26 | Gold | Signal | UL94 V-0 | 105 ░C | -55 °C | Stamped | Polybutylene Terephthalate (PBT) Glass Filled | Receptacle Female Sockets | 3 A | 3 | Housing/Shell (Unthreaded) | 2 | (DA A) High Density | Flash | Solder | Black | |||||
Amphenol ICC (Commercial Products) | 250 VDC | D-Sub High Density | Brass | Through Hole Right Angle | 26 | Gold | Signal | UL94 V-0 | 105 ░C | -55 °C | Stamped | Thermoplastic Glass Filled | Receptacle Female Sockets | 3 A | 3 | 4-40 Board Side | 2 | (DA A) High Density | Flash | Solder | Board Lock Grounding Tabs | 8.89 mm | 0.35 in | Black | ||
Amphenol ICC (Commercial Products) | 250 VDC | D-Sub High Density | Brass | Through Hole Right Angle | 26 | Gold | Signal | UL94 V-0 | 105 ░C | -55 °C | Stamped | Thermoplastic Glass Filled | Receptacle Female Sockets | 3 A | 3 | Female Screwlock (M3) Mating Side | 2 | (DA A) High Density | Solder | Board Lock Grounding Tabs | 8.89 mm | 0.35 in | Black | 0.76 Ám | 30 Áin | |
Amphenol ICC (Commercial Products) | 250 VDC | D-Sub High Density | Phosphor Bronze | Free Hanging (In-Line) | 26 | Gold | Signal | UL94 V-0 | 155 °C | -55 °C | Stamped | Thermoplastic Glass Filled | Receptacle Female Sockets | 3 A | 3 | Housing/Shell (Unthreaded) | 2 | (DA A) High Density | Flash | Black | ||||||
Amphenol ICC (Commercial Products) | 250 VDC | D-Sub High Density | Brass | Through Hole | 26 | Gold | Signal | UL94 V-0 | 105 ░C | -55 °C | Stamped | Polybutylene Terephthalate (PBT) Glass Filled | Receptacle Female Sockets | 3 A | 3 | Housing/Shell (Unthreaded) | 2 | (DA A) High Density | Solder | Black | 0.76 Ám | 30 Áin | ||||
Amphenol ICC (Commercial Products) | 250 VDC | D-Sub High Density | Phosphor Bronze | Free Hanging (In-Line) | 26 | Gold | Signal | UL94 V-0 | 155 °C | -55 °C | Stamped | Thermoplastic Glass Filled | Receptacle Female Sockets | 3 A | 3 | Female Screwlock (4-40) Mating Side | 2 | (DA A) High Density | 0.76 Ám | 30 Áin | ||||||
Amphenol ICC (Commercial Products) | 250 VDC | D-Sub High Density | Brass | Through Hole Right Angle | 26 | Gold | Signal | UL94 V-0 | 105 ░C | -55 °C | Stamped | Thermoplastic Glass Filled | Receptacle Female Sockets | 3 A | 3 | Board Side (M3) | 2 | (DA A) High Density | Solder | Board Lock Grounding Tabs | 8.89 mm | 0.35 in | Black | 0.76 Ám | 30 Áin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.06 | |
| 10 | $ 2.34 | |||
| 25 | $ 2.11 | |||
| 40 | $ 2.00 | |||
| 80 | $ 1.85 | |||
| 230 | $ 1.65 | |||
| 440 | $ 1.54 | |||
| 945 | $ 1.42 | |||
| 2400 | $ 1.30 | |||
Description
General part information
L77HDA26 Series
26 Position D-Sub, High Density Receptacle, Female Sockets Connector
