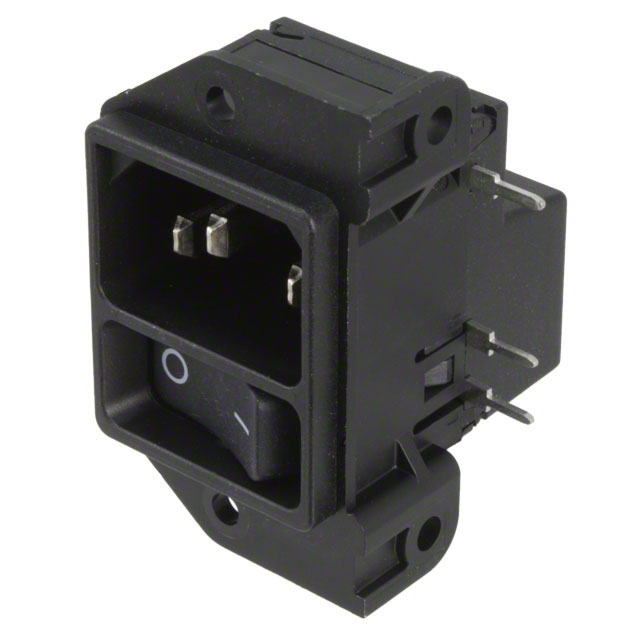

DC21.0021.1111

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	DC21.0021.1111

Accomodates a Fuse	False
Approval Agency	ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Features	Terminating Cover
Filter Type	Unfiltered - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle
Panel Cutout Dimensions [x]	34 mm
Panel Cutout Dimensions [y]	27.5 mm
Panel Thickness	0.138 in
Panel Thickness	3.5 mm
Switch Features	Switch On-Off
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Approval Agency	Connector Style	Panel Thickness	Panel Thickness	Mounting Type	Material Flammability Rating	Connector Type	Voltage Rating - Appliance Inlet	Termination	Termination	Accomodates a Fuse	Features	Filter Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Current Rating - Appliance Inlet	Switch Features	Ingress Protection
SCHURTER Inc. DC21.0021.1111	cULus ENEC	IEC 320-C14	0.138 in	3.5 mm	Panel Mount Flange Through Hole Right Angle	UL94 V-0	Receptacle Male Blades - Module	250 VAC	0.189 " 4.8 mm	Quick Connect		Terminating Cover	Unfiltered - Commercial	34 mm	27.5 mm	10 A	Switch On-Off	IP40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
