Technical Specifications
Parameters and characteristics for this part
| Specification | TXM 075-115 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus |
| Current - Output 1 | 5 A |
| Efficiency | 86 % |
| Features | Adjustable Output, Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 75 W |
| Size / Dimension [x] | 129 mm |
| Size / Dimension [x] | 5.08 in |
| Size / Dimension [y] | 99.1 mm |
| Size / Dimension [y] | 3.9 in |
| Size / Dimension [z] | 1.5 " |
| Size / Dimension [z] | 38.1 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 127 VDC, 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 55.22 | |
| 10 | $ 50.70 | |||
| 25 | $ 49.01 | |||
| 50 | $ 47.77 | |||
| 100 | $ 46.56 | |||
| 250 | $ 40.26 | |||
Description
General part information

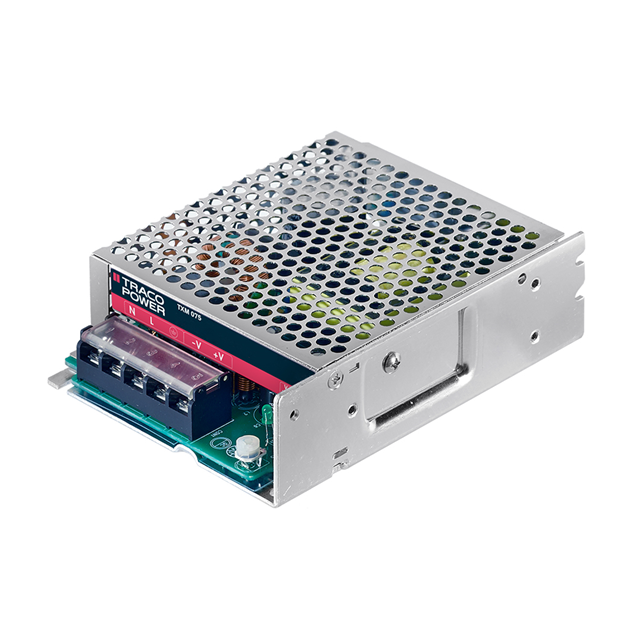

TXM 075 Series
Enclosed AC DC Converters 1 Output 15V 90 ~ 264 VAC, 127 ~ 370 VDC Input
