TS14002-C018DFNR

Active

Semtech Corporation

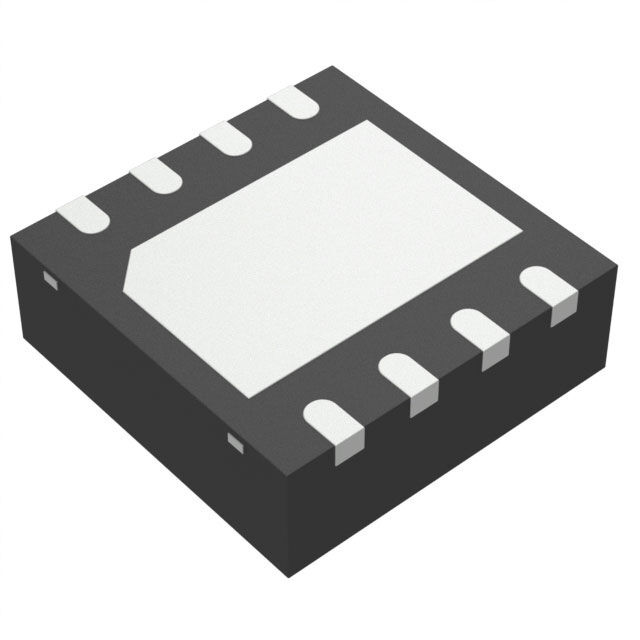

STANDARD REGULATOR POS 1.8V 0.2A 8-PIN DFN EP

Search across all available documentation for this part.

Active

Semtech Corporation

STANDARD REGULATOR POS 1.8V 0.2A 8-PIN DFN EP

Technical Specifications

Parameters and characteristics for this part

Part	Number of Regulators	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Output Configuration	Control Features	Voltage - Input (Max) [Max]	Current - Output	Package / Case	Supplier Device Package	Voltage - Output (Min/Fixed)	Protection Features	Current - Supply (Max) [Max]	Voltage - Output (Min/Fixed) [Min]
Semtech Corporation TS14002-C033DFNR	1	Surface Mount	-40 °C	85 °C	1.81 mOhm	Positive	Enable	5.5 V	150 mA	8-VFDFN Exposed Pad	8-DFN (2x2)	3.3 V	Over Current	200 µA
Semtech Corporation TS14002-C018DFNR	1	Surface Mount	-40 °C	85 °C	1.81 mOhm	Positive	Enable	5.5 V	150 mA	8-VFDFN Exposed Pad	8-DFN (2x2)	1.8 V	Over Current	200 µA
Semtech Corporation TS14002-C020DFNR	1	Surface Mount	-40 °C	85 °C	1.81 mOhm	Positive	Enable	5.5 V	150 mA	8-VFDFN Exposed Pad	8-DFN (2x2)		Over Current	200 µA	2 V
Semtech Corporation TS14002-C012DFNR	1	Surface Mount	-40 °C	85 °C	1.81 mOhm	Positive	Enable	5.5 V	150 mA	8-VFDFN Exposed Pad	8-DFN (2x2)	1.2 V	Over Current	200 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 150mA 8-DFN (2x2)
