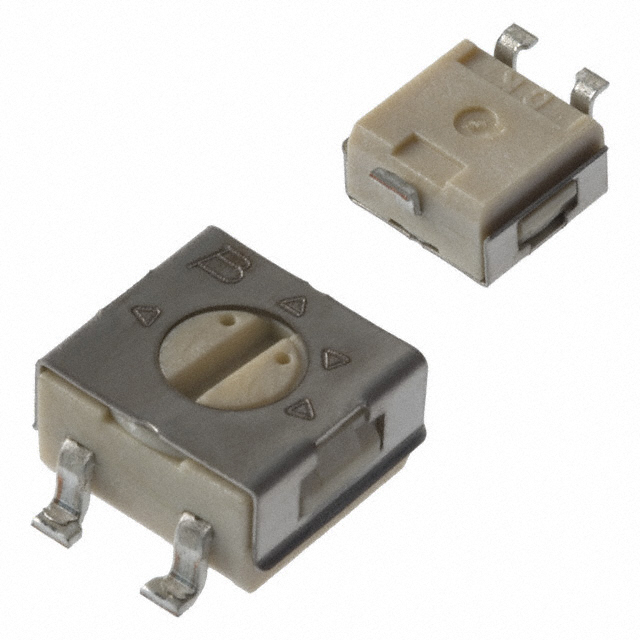

3314G-1-253E

Active

Bourns Inc.

TRIMMER 25K OHM 0.25W GW TOP ADJ

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3314G-1-253E

Active

Bourns Inc.

TRIMMER 25K OHM 0.25W GW TOP ADJ

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3314G-1-253E

Adjustment Type	Top Adjustment
Mounting Type	Surface Mount
Number of Turns	1
Power (Watts)	0.25 W
Power (Watts)	250 mW
Resistance	25 kOhms
Resistive Material	Cermet
Size / Dimension [x]	4.5 mm
Size / Dimension [x]	0.177 in
Size / Dimension [y]	0.177 "
Size / Dimension [y]	4.5 mm
Temperature Coefficient	100 ppm/°C
Termination Style	Gull Wing
Tolerance	20 %

3314G Series

Part	Resistance	Adjustment Type	Tolerance	Number of Turns	Resistive Material	Temperature Coefficient	Power (Watts)	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Termination Style
Bourns Inc. 3314G-2-102G	1000 Ohms	Top Adjustment	20 %	1	Cermet	100 ppm/°C	0.25 W	250 mW	4.5 mm	0.177 in	0.177 "	4.5 mm	Surface Mount	Gull Wing
Bourns Inc. 3314G-1-203G	20 kOhms	Top Adjustment	20 %	1	Cermet	100 ppm/°C	0.25 W	250 mW	4.5 mm	0.177 in	0.177 "	4.5 mm	Surface Mount	Gull Wing
Bourns Inc. 3314G-2-101E	100 Ohms	Top Adjustment	20 %	1	Cermet	100 ppm/°C	0.25 W	250 mW	4.5 mm	0.177 in	0.177 "	4.5 mm	Surface Mount	Gull Wing
Bourns Inc. 3314G-2-102E	1000 Ohms	Top Adjustment	20 %	1	Cermet	100 ppm/°C	0.25 W	250 mW	4.5 mm	0.177 in	0.177 "	4.5 mm	Surface Mount	Gull Wing
Bourns Inc. 3314G-1-254E	250 kOhms	Top Adjustment	20 %	1	Cermet	100 ppm/°C	0.25 W	250 mW	4.5 mm	0.177 in	0.177 "	4.5 mm	Surface Mount	Gull Wing
Bourns Inc. 3314G-2-473E	47 kOhms	Top Adjustment	20 %	1	Cermet	100 ppm/°C	0.25 W	250 mW	4.5 mm	0.177 in	0.177 "	4.5 mm	Surface Mount	Gull Wing
Bourns Inc. 3314G-1-504G		Top Adjustment	20 %	1	Cermet	100 ppm/°C	0.25 W	250 mW	4.5 mm	0.177 in	0.177 "	4.5 mm	Surface Mount	Gull Wing
Bourns Inc. 3314G-2-205E	2 MOhms	Top Adjustment	20 %	1	Cermet	100 ppm/°C	0.25 W	250 mW	4.5 mm	0.177 in	0.177 "	4.5 mm	Surface Mount	Gull Wing
Bourns Inc. 3314G-1-253E	25 kOhms	Top Adjustment	20 %	1	Cermet	100 ppm/°C	0.25 W	250 mW	4.5 mm	0.177 in	0.177 "	4.5 mm	Surface Mount	Gull Wing
Bourns Inc. 3314G-1-501E	500 Ohms	Top Adjustment	20 %	1	Cermet	100 ppm/°C	0.25 W	250 mW	4.5 mm	0.177 in	0.177 "	4.5 mm	Surface Mount	Gull Wing

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.83
		10	$ 1.61
		25	$ 1.44
		50	$ 1.39
		100	$ 1.33
		250	$ 1.28
	Digi-Reel®	1	$ 1.83
		10	$ 1.61
		25	$ 1.44
		50	$ 1.39
		100	$ 1.33
		250	$ 1.28
	Tape & Reel (TR)	500	$ 1.06
		1000	$ 1.00
		2500	$ 0.86
		5000	$ 0.83
		12500	$ 0.78

Description

General part information

3314G Series

25 kOhms 0.25W, 1/4W Gull Wing Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
