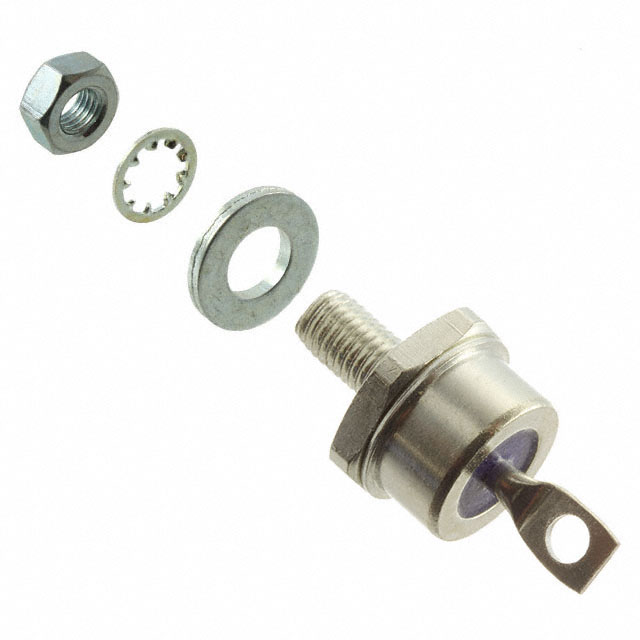

1N1184A

Active

GeneSiC Semiconductor

DIODE GEN PURP 100V 40A DO5

Search across all available documentation for this part.

Active

GeneSiC Semiconductor

DIODE GEN PURP 100V 40A DO5

Technical Specifications

Parameters and characteristics for this part

Specification	1N1184A

Current - Average Rectified (Io)	40 A
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Chassis, Stud Mount
Operating Temperature - Junction [Max]	200 C
Operating Temperature - Junction [Min]	-65 C
Package / Case	DO-203AB, DO-5, Stud
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	DO-5
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If	1.1 V

Part	Speed	Speed	Package / Case	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Supplier Device Package	Technology	Voltage - Forward (Vf) (Max) @ If
GeneSiC Semiconductor 1N1184	Standard Recovery >500ns	200 mA	DO-203AB DO-5 Stud	Chassis Stud Mount	190 °C	-65 C	35 A	100 V	10 µA	DO-5	Standard
GeneSiC Semiconductor 1N1184A	Standard Recovery >500ns	200 mA	DO-203AB DO-5 Stud	Chassis Stud Mount	200 C	-65 C	40 A	100 V	10 µA	DO-5	Standard	1.1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 100 V 40A Chassis, Stud Mount DO-5
