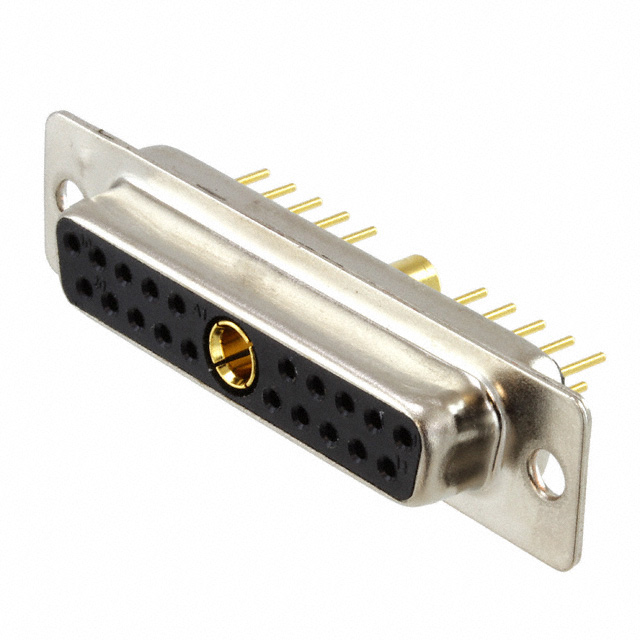

COMBINATION LAYOUT D SUB CONNECTOR, SEAL-D, IP68, SEAL-D 681S SERIES, DB-21W1, RECEPTACLE

Search across all available documentation for this part.

Active

MH Connectors

COMBINATION LAYOUT D SUB CONNECTOR, SEAL-D, IP68, SEAL-D 681S SERIES, DB-21W1, RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	681S21W1203L001

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A
Current Rating (Amps) [Max]	40 A
Current Rating (Amps) [Min]	20 Amps
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Housing/Shell (Unthreaded)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions [custom]	20
Number of Positions [custom]	21
Number of Positions [custom]	1
Number of Rows	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	3 (DB, B) - 21W1
Termination	Solder

Part	Current Rating (Amps) [Min]	Current Rating (Amps) [Max]	Current Rating (Amps)	Contact Finish	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Connector Style	Shell Size, Connector Layout	Color	Mounting Type	Termination	Dielectric Material	Shell Material, Finish	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Connector Type	Contact Material	Number of Rows	Contact Finish Thickness	Contact Type	Material Flammability Rating	Flange Feature	Features	Number of Positions [custom]
MH Connectors 681S21W1203L001	20 Amps	40 A	5 A	Gold	20	21	1	Combo D-Sub	3 (DB B) - 21W1	Black	Panel Mount Through Hole	Solder	Polybutylene Terephthalate (PBT)	Nickel Plated Steel	155 °C	-55 °C	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	Copper Alloy	2	Flash	Signal and Power	UL94 V-0	Housing/Shell (Unthreaded)
MH Connectors 681S21WA4PL001			5 A 40 A	Gold			4	Combo D-Sub	21WA4 4 (DC C)	Black	Panel Mount Through Hole	Solder	Polybutylene Terephthalate (PBT)	Nickel Plated Steel	155 °C	-55 °C	IP67 - Dust Tight Waterproof	Male Pins Plug	Copper Alloy	2	Flash	Signal and Power	UL94 V-0	Housing/Shell (Unthreaded)	Grounding Indents	17
