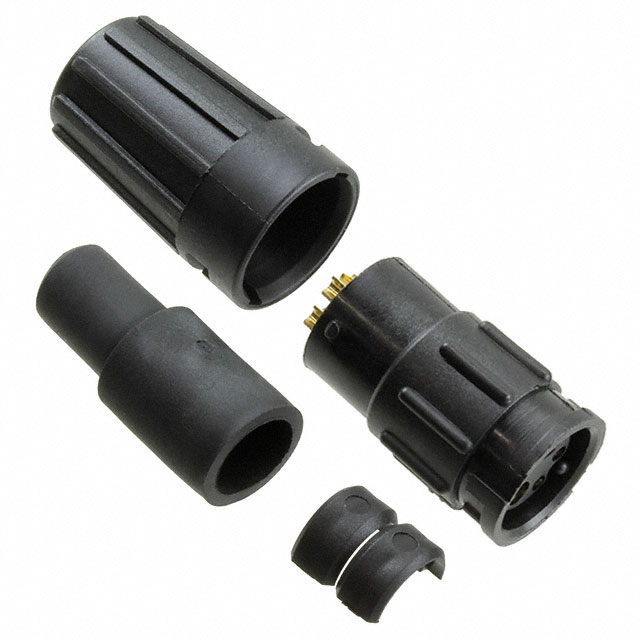

W8C82-6SG-528
ActiveConxall/Switchcraft
CONN RCPT FMALE 6P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W8C82-6SG-528
ActiveConxall/Switchcraft
CONN RCPT FMALE 6P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | W8C82-6SG-528 |
|---|---|
| Applications | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Thermoplastic |
| Cable Opening [diameter] | 6.6 mm |
| Cable Opening [diameter] | 7.24 mm |
| Cable Opening [diameter] | 0.285 in, 0.26 in |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock |
| Features | UV Resistant, Backshell |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions [custom] | 4 |
| Number of Positions [custom] | 6 |
| Number of Positions [custom] | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Voltage Rating | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.69 | |
| 10 | $ 15.33 | |||
| 25 | $ 14.53 | |||
| 50 | $ 14.32 | |||
| 100 | $ 12.64 | |||
| 300 | $ 11.79 | |||
| 500 | $ 11.54 | |||
Description
General part information
W8C82-6 Series
6 (4 + 2 Power) Position Circular Connector Plug, Female Sockets Solder Cup
