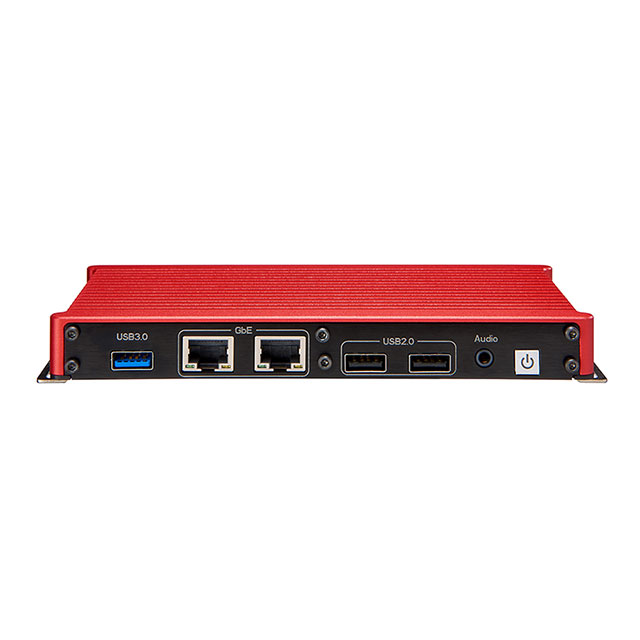

U7-131/E3815-1G-MSATA64G-P104B12-01
ActiveEFCO Technology Corporation
SBC 1.46GHZ 1 CORE 1GB/- RAM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
U7-131/E3815-1G-MSATA64G-P104B12-01
ActiveEFCO Technology Corporation
SBC 1.46GHZ 1 CORE 1GB/- RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | U7-131/E3815-1G-MSATA64G-P104B12-01 |
|---|---|
| Core Processor | Intel Atom E3815 |
| Digital I/O Lines | 16 |
| Ethernet | RJ45, GbE |
| Ethernet | 2 |
| Expansion Site/Bus | mPCIe, USIM |
| Form Factor | ATX |
| Number of Cores | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 5 W |
| RAM Capacity/Installed | - |
| RAM Capacity/Installed | 1 GB |
| RS-232 (422, 485) | 1 |
| Size / Dimension [x] | 6.81 in |
| Size / Dimension [x] | 172.97 mm |
| Size / Dimension [y] | 3.46 " |
| Size / Dimension [y] | 87.88 mm |
| Speed | 1.46 GHz |
| USB | USB 3.0/2.0, USB 2.0 |
| Video Outputs | DDI |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 577.50 | |
Description
General part information
U7-131 Series
Single Board Computer 1.46GHz 1 Core 1GB/- RAM Intel Atom E3815
