Amphenol CONEC

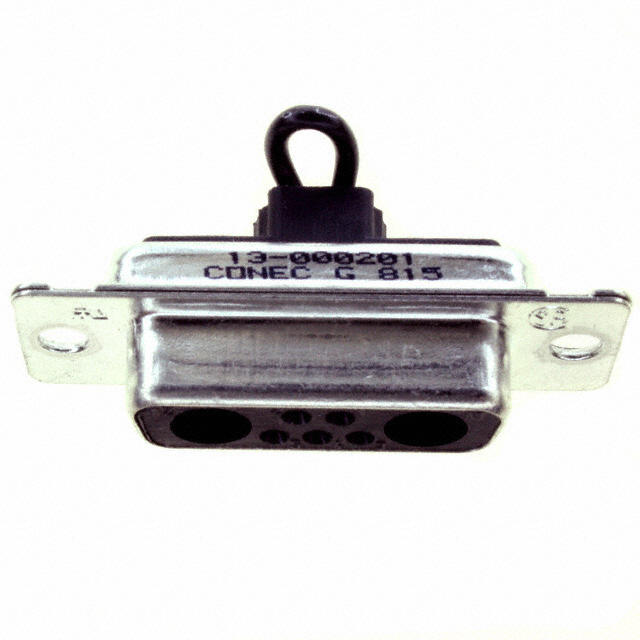

CONN D-SUB HOUSING RCPT 7POS

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB HOUSING RCPT 7POS

Technical Specifications

Parameters and characteristics for this part

Specification	13-000201

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle for Female Contacts
Contact Type	Signal and Power
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Wire Bridge
Flange Feature	Housing/Shell (Unthreaded)
Mating Cycles	250
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions [custom]	7
Number of Positions [custom]	2
Number of Rows	2
Shell Finish Thickness	8 µm
Shell Finish Thickness	315 µin
Shell Size, Connector Layout	2 (DA, A) - 7W2

Part	Connector Style	Dielectric Material	Number of Positions [custom]	Number of Positions [custom]	Connector Type	Number of Rows	Features	Note	Color	Mounting Type	Flange Feature	Shell Material, Finish	Shell Size, Connector Layout	Contact Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Termination	Shell Finish Thickness	Shell Finish Thickness	Mating Cycles
Amphenol CONEC 13-000220	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	7	2	Receptacle for Female Contacts	2	Mounting Hardware Strain Relief	Contacts Not Included	Black	Free Hanging (In-Line)	Cable Side	Nickel Plated Steel	2 (DA A) - 7W2	Signal and Power
Amphenol CONEC 13-000241	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	7	2	Receptacle Female Sockets	2	Mounting Hardware Strain Relief		Black	Free Hanging (In-Line)	Female Screwlock (4-40) Mating Side		2 (DA A) - 7W2	Signal and Power	Copper Alloy	0.76 Ám	30 Áin	UL94 V-0	20 AWG	8 AWG	Gold	Crimp
Amphenol CONEC 13-000201	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	7	2	Receptacle for Female Contacts	2	Wire Bridge	Contacts Not Included	Black	Free Hanging (In-Line)	Housing/Shell (Unthreaded)		2 (DA A) - 7W2	Signal and Power									8 µm	315 µin	250

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	30	$ 6.77

General part information

Receptacle for Female Contacts Housing D-Sub, Combo Connector 7 (5 + 2 Power) Position
