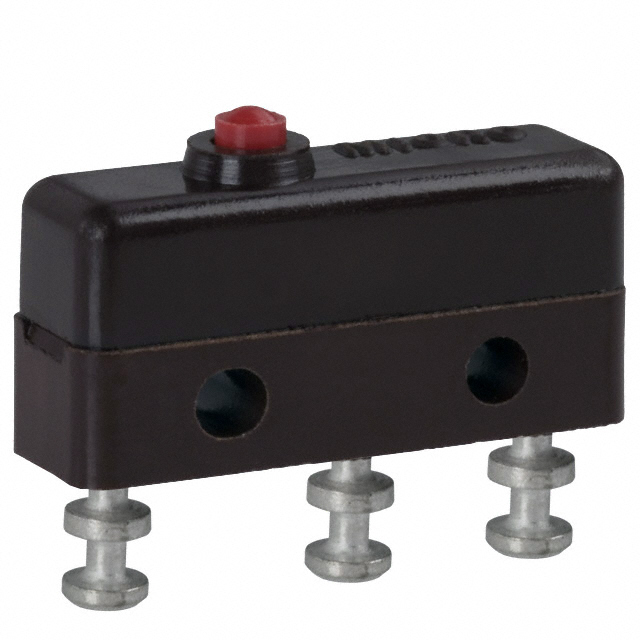

41SM1-T2

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 11A 250V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 11A 250V

Technical Specifications

Parameters and characteristics for this part

Part	Switch Function	Mounting Type	Differential Travel	Differential Travel	Circuit	Termination Style	Voltage Rating - DC	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force	Actuator Type	Mechanical Life	Operating Position	Operating Position	Overtravel	Overtravel	Release Force	Voltage Rating - AC	Pretravel	Pretravel	Termination Style	Termination Style
Honeywell Sensing and Productivity Solutions 41SM1-T2	On-Mom	Chassis Mount	0.1 mm	0.004 in	SPDT	Solder Turret	30 V	5 A 11 A	-55 °C	125 °C	141 gf	Round (Pin Plunger)	80000 Cycles	8.4 mm	0.33 in	0.13 mm	0.005 in	28 gf	250 V	0.03 in	0.8 mm
Honeywell Sensing and Productivity Solutions 41SM1-T	On-Mom	Chassis Mount	0.1 mm	0.004 in	SPDT	Solder Turret	30 V	5 A 11 A	-55 °C	125 °C	141 gf	Round (Pin Plunger)	80000 Cycles	8.4 mm	0.33 in	0.13 mm	0.005 in	28 gf	250 V	0.03 in	0.8 mm
Honeywell Sensing and Productivity Solutions 41SM1-H58	On-Mom	Chassis Mount	0.1 mm	0.004 in	SPDT	Quick Connect - 0.058 in (Round)	30 V	5 A 11 A	-55 °C	125 °C	141 gf	Round (Pin Plunger)	80000 Cycles	8.4 mm	0.33 in	0.13 mm	0.005 in	28 gf	250 V	0.03 in	0.8 mm
Honeywell Sensing and Productivity Solutions 41SM1-H4	On-Mom	Chassis Mount	0.1 mm	0.004 in	SPDT	Quick Connect Solder	30 V	5 A 11 A	-55 °C	125 °C	141 gf	Round (Pin Plunger)	80000 Cycles	8.4 mm	0.33 in	0.13 mm	0.005 in	28 gf	250 V	0.03 in	0.8 mm	0.11 in	2.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
