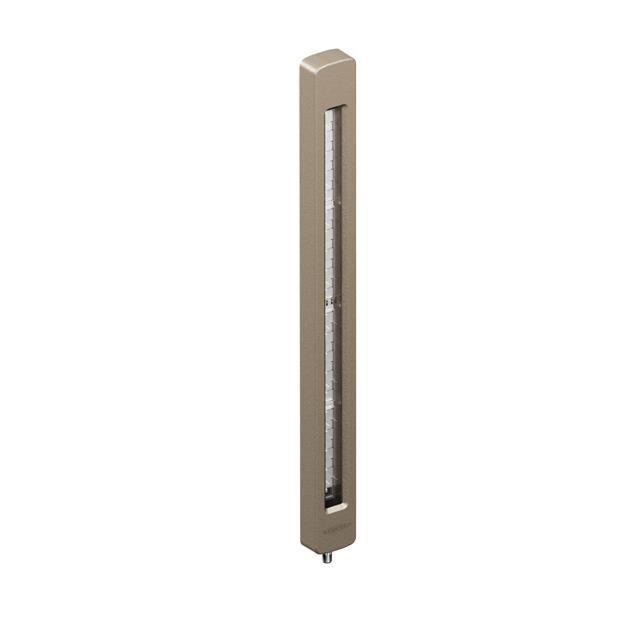

WLC60XW640GAQ
ActiveBANNER ENGINEERING
WORK LIGHT STRIP 640MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WLC60XW640GAQ
ActiveBANNER ENGINEERING
WORK LIGHT STRIP 640MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WLC60XW640GAQ |
|---|---|
| Approval Agency | cULus, CE |
| Housing Material | Aluminum (Al), Nickel Plated |
| Illumination Color | White, Cool |
| Ingress Protection | IP67/IP68G/IP69K |
| Length [x] | 25.2 " |
| Length [x] | 640 mm |
| Lens Type | Flat, Clear |
| Luminous Flux | 2600 lm |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Profile (W x H) [x] | 60.9 mm |
| Profile (W x H) [x] | 2.4 in |
| Profile (W x H) [y] | 31.3 mm |
| Profile (W x H) [y] | 1.23 " |
| Rated Life | 60000 Hours |
| Termination Style | Connector (M12) |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
WLC60XW640 Series
WORK LIGHT STRIP 640MM
Documents
Technical documentation and resources
