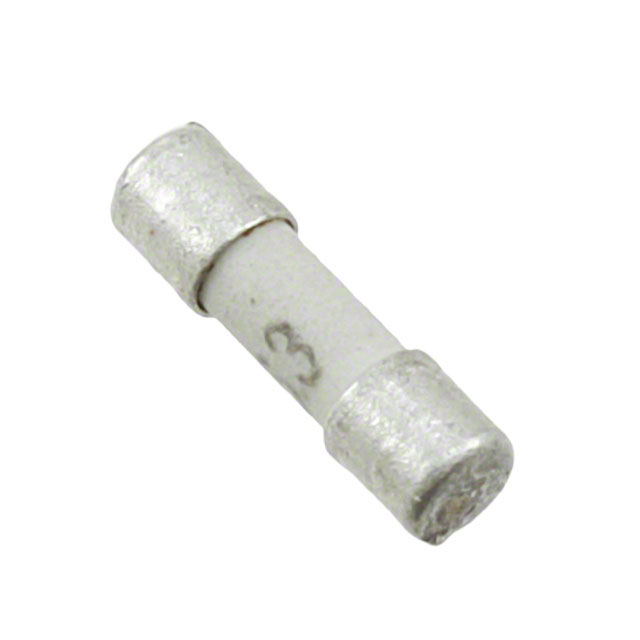

7010.9969.57

Active

SCHURTER Inc.

FUSE BRD MNT 6.3A 125VAC/VDC

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE BRD MNT 6.3A 125VAC/VDC

Technical Specifications

Parameters and characteristics for this part

Specification	7010.9969.57

Breaking Capacity @ Rated Voltage	63 A
Current Rating (Amps)	6.3 A
Fuse Type	Board Mount
Melting I²t	51
Mounting Type	Requires Holder
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Package / Case	Cartridge, Non-Standard
Response Time	Slow Blow
Size / Dimension [diameter]	2 mm
Size / Dimension [diameter]	0.079 "
Size / Dimension [x]	7 mm
Size / Dimension [x]	0.276 "
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

Part	Package / Case	Fuse Type	Voltage Rating - DC	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Voltage Rating - AC	Response Time	Mounting Type	Melting I²t	Breaking Capacity @ Rated Voltage
SCHURTER Inc. 7010.9969.57	Cartridge Non-Standard	Board Mount	125 VDC	6.3 A	85 °C	-55 °C	7 mm	2 mm	0.079 "	0.276 "	125 V	Slow Blow	Requires Holder	51	63 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.82

General part information

6.3 A 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Requires Holder Cartridge, Non-Standard
