161-05089

Active

HELLERMANNTYTON

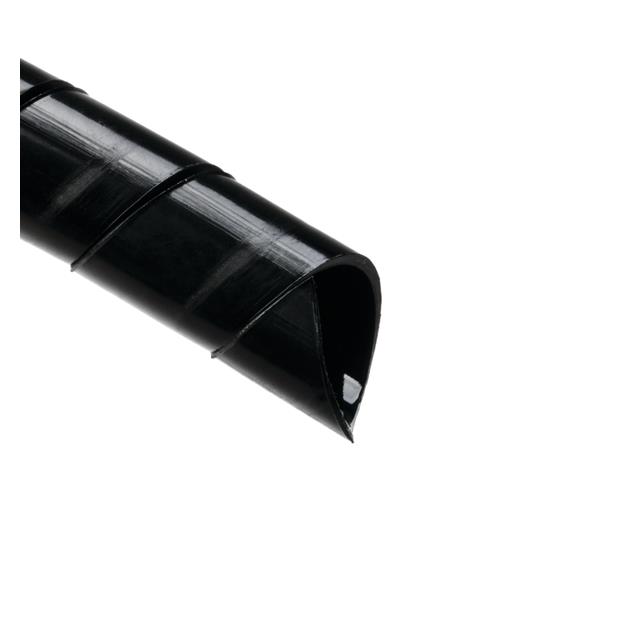

SPIRAL WRAP 3/4" X 500' BLACK

Search across all available documentation for this part.

Active

HELLERMANNTYTON

SPIRAL WRAP 3/4" X 500' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	161-05089

Color	Black
Diameter - Inside, Expanded [diameter]	5 in
Diameter - Inside, Expanded [diameter]	127 mm
Diameter - Outside, Non-Expanded [diameter]	19.05 mm
Diameter - Outside, Non-Expanded [diameter]	0.75 in
Features	Chemical Resistant
Length [x]	500 '
Length [x]	152.4 m
Material Flammability Rating	UL94 V-2
Operating Temperature [Max]	121 °C
Operating Temperature [Min]	-40 °C
Type	Spiral Wrap
Type Attributes	Harness
Wall Thickness	0.032 in
Wall Thickness	0.81 mm

Part	Color	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Type	Wall Thickness	Wall Thickness	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Type Attributes	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Length [x]	Length [x]	Features	Length	Length	Heat Protection	Material
HELLERMANNTYTON 161-05089	Black	5 in	127 mm	Spiral Wrap	0.032 in	0.81 mm	19.05 mm	0.75 in	Harness	-40 °C	121 °C	UL94 V-2	500 '	152.4 m	Chemical Resistant
HELLERMANNTYTON 161-05084	Black	7 in	177.8 mm	Spiral Wrap	0.08 in	2.03 mm	25.4 mm	1 "	Harness	-20 C	80 C	UL94 V-0			Chemical Resistant	100 ft	30.48 m	Flame Retardant	Polyethylene (PE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2691.18
