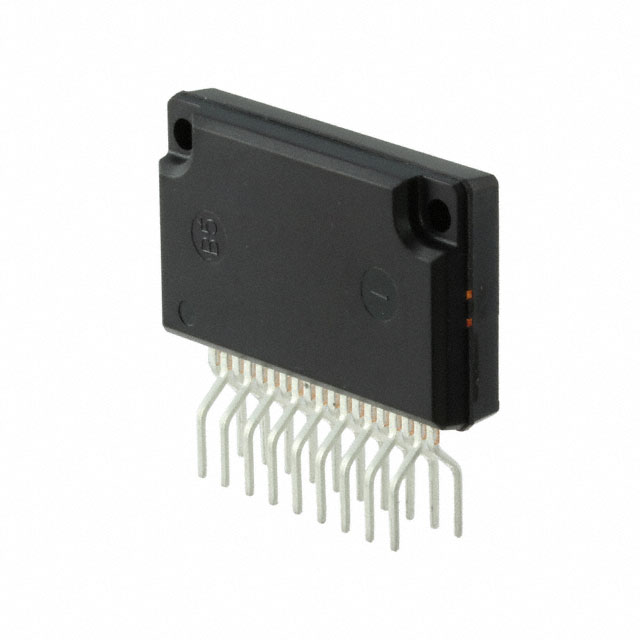

STK672-740B-E

Obsolete

Sanyo

TWO PHASE, STEPPING MOTOR DRIVER

Search across all available documentation for this part.

Obsolete

Sanyo

TWO PHASE, STEPPING MOTOR DRIVER

Technical Specifications

Parameters and characteristics for this part

Specification	STK672-740B-E

Applications	General Purpose
Current - Output	3.3 A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type - Stepper	Unipolar
Mounting Type	Through Hole
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-20 °C
Output Configuration	Half Bridge (2)
Package / Case	19-SSIP Formed Leads
Step Resolution	1, 0.5
Supplier Device Package	19-SIP
Technology	Power MOSFET
Voltage - Load [Max]	46 V
Voltage - Load [Min]	0 V
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

Part	Mounting Type	Motor Type - Stepper	Function	Output Configuration	Current - Output	Step Resolution	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage - Load [Max]	Voltage - Load [Min]	Supplier Device Package	Technology	Package / Case	Interface	Operating Temperature	Step Resolution
Sanyo STK672-740B-E	Through Hole	Unipolar	Driver - Fully Integrated Control and Power Stage	Half Bridge (2)	3.3 A	0.5 1	105 °C	-20 °C	General Purpose	4.75 V	5.25 V	46 V	0 V	19-SIP	Power MOSFET	19-SSIP Formed Leads	Parallel
Sanyo STK672-401C-E	Through Hole	Unipolar	Driver - Fully Integrated Control and Power Stage	Half Bridge (2)	2 A				General Purpose	4.75 V	5.25 V	45 V	10 V	19-SIP	Power MOSFET	19-SSIP Formed Leads	Parallel	150 °C	1 1/16 1/2 1/4 1/8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	52	$ 5.78

General part information

Unipolar Motor Driver Power MOSFET Parallel 19-SIP

Technical documentation and resources

No documents available
