CA-DKCA0-305L0-AJI0-O

Active

Adam Tech

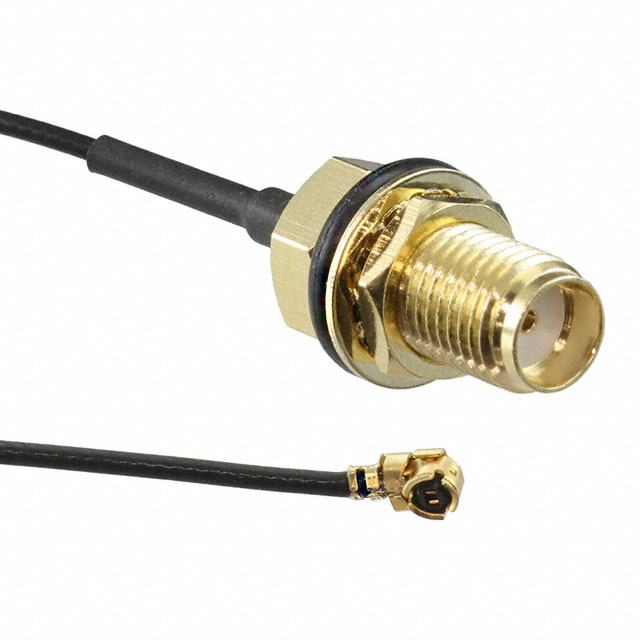

COAX CBL U.FL, MHF1 TO SMA 12"

Search across all available documentation for this part.

Active

Adam Tech

COAX CBL U.FL, MHF1 TO SMA 12"

Technical Specifications

Parameters and characteristics for this part

Specification	CA-DKCA0-305L0-AJI0-O

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	Right Angle, I-PEX MHF1 Plug, U.FL (UMCC)
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	1.13mm OD Coaxial Cable
Color	Black
Frequency - Max [Max]	6000 MHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	U.FL (UMCC), I-PEX MHF1 to SMA

Part	1st Connector Mounting Feature	1st Connector Mounting Type	Frequency - Max [Max]	2nd Connector Mounting Type	Color	Length	Length	2nd Contact Gender	Style	2nd Connector	1st Connector	Overall Impedance	1st Contact Gender	Cable Type	Cable Type [diameter]
Adam Tech CA-DKCA0-305L0-AJI0-O	Bulkhead - Front Side Nut	Panel Mount	6000 MHz	Free Hanging (In-Line)	Black	12 "	304.8 mm	Female	I-PEX MHF1 to SMA U.FL (UMCC)	I-PEX MHF1 Plug Right Angle U.FL (UMCC)	SMA Jack	50 Ohms	Female	1.13mm OD Coaxial Cable
Adam Tech CA-DKCA0-305L1-ALI0-O	Bulkhead - Front Side Nut	Panel Mount	6000 MHz	Free Hanging (In-Line)	Black	12 "	304.8 mm	Female	IPEX MHF1 RP-SMA U.FL (UMCC)	U.FL (UMCC) IPEX MHF1 Plug Right Angle	RP-SMA Jack	50 Ohms	Male		1.37 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial U.FL (UMCC), I-PEX MHF1 to SMA 1.13mm OD Coaxial Cable 12.00" (304.80mm)
