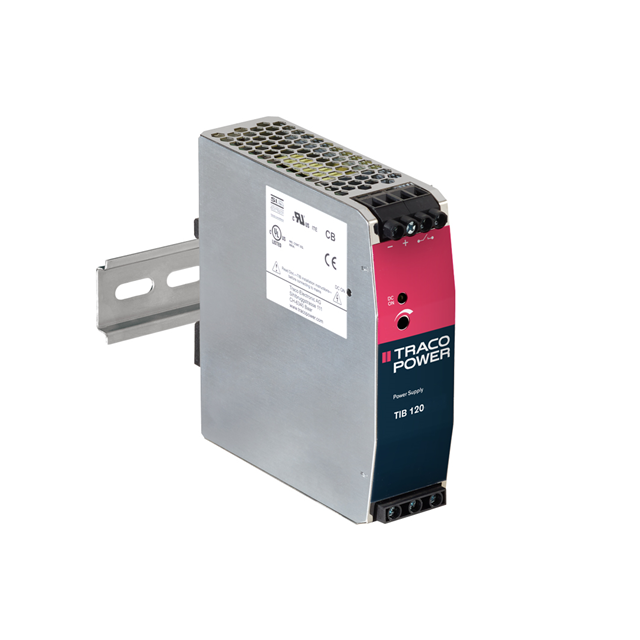

TIB 120-148

Active

Traco Power

AC/DC DIN RAIL SUPPLY 48V 120W

Search across all available documentation for this part.

Active

Traco Power

AC/DC DIN RAIL SUPPLY 48V 120W

Technical Specifications

Parameters and characteristics for this part

Specification	TIB 120-148

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	Industrial, ITE (Commercial)
Approval Agency	CB, CE, SIQ, cURus, cULus
Current - Output (Max) [Max]	2.5 A
Efficiency	94 %
Features	PFC, Adjustable Output, Universal Input
Input Type	AC
Number of Outputs	1
Size / Dimension [x]	4.5 in
Size / Dimension [x]	114.2 mm
Size / Dimension [y]	36 mm
Size / Dimension [y]	1.42 in
Size / Dimension [z]	124.2 mm
Size / Dimension [z]	4.89 "
Voltage - Isolation	4.25 kV
Voltage - Output 1	48 V

Part	Approval Agency	Voltage - Output 1	Input Type	Voltage - Isolation	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Number of Outputs	Current - Output (Max) [Max]	Features	Efficiency	AC Voltage - Input [Min]	AC Voltage - Input [Max]
Traco Power TIB 120-148	CB CE cULus cURus SIQ	48 V	AC	4.25 kV	Industrial ITE (Commercial)	124.2 mm	36 mm	1.42 in	4.89 "	4.5 in	114.2 mm	1	2.5 A	Adjustable Output PFC Universal Input	94 %	85 VAC	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 48V 120W

Technical documentation and resources
