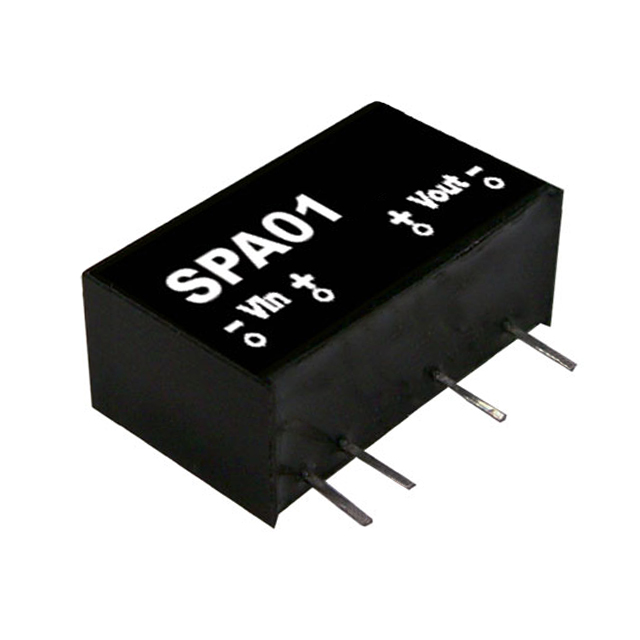

SPA01A-12

Active

MEAN WELL USA Inc.

DC DC CONVERTER 12V 1W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

DC DC CONVERTER 12V 1W

Technical Specifications

Parameters and characteristics for this part

Part	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Efficiency	Number of Outputs	Applications	Type	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Isolation	Features	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]
MEAN WELL USA Inc. SPA01C-05	200 mA	75 V	77 %	1	ITE (Commercial)	Isolated Module	Through Hole	36 V	5 V	-40 °C	90 °C	6-SIP Module 4 Leads	1.5 kV	OCP SCP	17.4 mm	0.69 in	0.44 "	7.8 mm	0.31 "	11.1 mm
MEAN WELL USA Inc. SPA01A-12	83 mA	18 V	78 %	1	ITE (Commercial)	Isolated Module	Through Hole	9 V	12 V	-40 °C	90 °C	6-SIP Module 4 Leads	1.5 kV	OCP SCP	17.4 mm	0.69 in	0.44 "	7.8 mm	0.31 "	11.1 mm
MEAN WELL USA Inc. SPA01C-12	83 mA	75 V	78 %	1	ITE (Commercial)	Isolated Module	Through Hole	36 V	12 V	-40 °C	90 °C	6-SIP Module 4 Leads	1.5 kV	OCP SCP	17.4 mm	0.69 in	0.44 "	7.8 mm	0.31 "	11.1 mm
MEAN WELL USA Inc. SPA01B-15	67 mA	36 V	79 %	1	ITE (Commercial)	Isolated Module	Through Hole	18 V	15 V	-40 °C	90 °C	6-SIP Module 4 Leads	1.5 kV	OCP SCP	17.4 mm	0.69 in	0.44 "	7.8 mm	0.31 "	11.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 12V 83mA 9V - 18V Input
