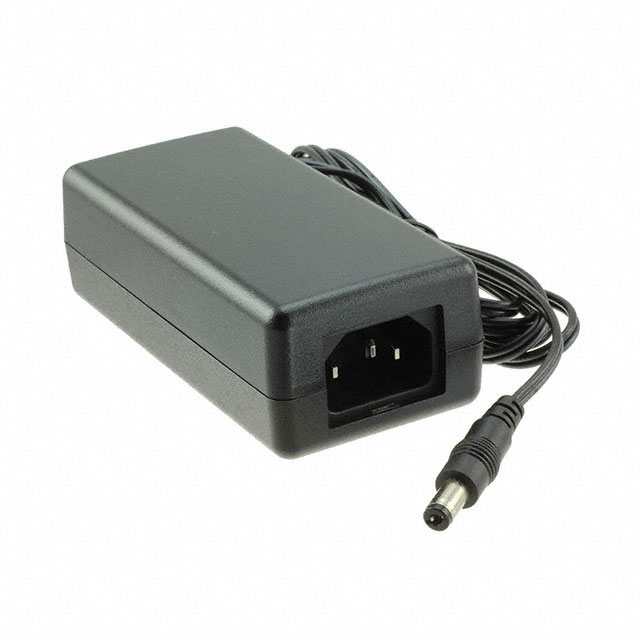

PSAA18U-120L6
ObsoletePhihong USA
AC/DC DESKTOP ADAPTER 12V 18W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PSAA18U-120L6
ObsoletePhihong USA
AC/DC DESKTOP ADAPTER 12V 18W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PSAA18U-120L6 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus, CE |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 1.5 A |
| Efficiency | CoC Tier 2, Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.1 mm |
| Output Connector [z] | 10 mm |
| Polarization | Positive Center |
| Power (Watts) | 18 W |
| Region Utilized | International |
| Size / Dimension [x] | 103 mm |
| Size / Dimension [x] | 4.06 " |
| Size / Dimension [y] | 49 mm |
| Size / Dimension [y] | 1.93 in |
| Size / Dimension [z] | 33.5 mm |
| Size / Dimension [z] | 1.32 in |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PSAA18U Series
12V 18 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
