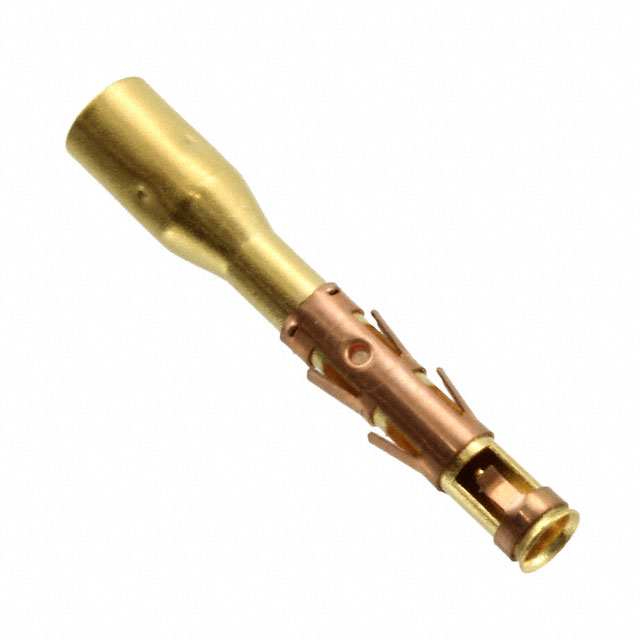

RCDX60-36D28
ActiveSouriau-Sunbank by Eaton
CONN PIN COAX 26AWG GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
RCDX60-36D28
ActiveSouriau-Sunbank by Eaton
CONN PIN COAX 26AWG GOLD CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RCDX60-36D28 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.75 µm |
| Contact Finish Thickness | 29.5 µin |
| Contact Material | Copper Alloy |
| Contact Termination | Crimp |
| Pin or Socket | Pin Center, Assembly, Coax |
| Type | Coaxial |
| Wire Gauge | 26 AWG |
RCDX60 Series
| Part | Contact Finish | Wire Gauge | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Contact Termination | Pin or Socket | Type | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|
Souriau-Sunbank by Eaton | Gold | 28 AWG | 0.75 µm | 29.5 µin | Copper Alloy | Crimp | Assembly Coax Pin Center | Coaxial | |
Souriau-Sunbank by Eaton | Gold | 0.75 µm | 29.5 µin | Copper Alloy | Crimp | Assembly Coax Pin Center | Coaxial | Coaxial Cable | |
Souriau-Sunbank by Eaton | Gold | 26 AWG | 0.75 µm | 29.5 µin | Copper Alloy | Crimp | Assembly Coax Pin Center | Coaxial | |
Souriau-Sunbank by Eaton | Gold | 0.75 µm | 29.5 µin | Copper Alloy | Crimp | Assembly Coax Pin Center | Coaxial | ||
Souriau-Sunbank by Eaton | Gold | 26 AWG | 0.75 µm | 29.5 µin | Copper Alloy | Crimp | Assembly Coax Pin Center | Coaxial | |
Souriau-Sunbank by Eaton | Gold | 26 AWG | 0.75 µm | 29.5 µin | Copper Alloy | Crimp | Assembly Coax Pin Center | Coaxial |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.05 | |
| 10 | $ 21.06 | |||
| 25 | $ 20.15 | |||
| 50 | $ 19.50 | |||
| 100 | $ 18.85 | |||
| 250 | $ 17.81 | |||
| 500 | $ 17.29 | |||
Description
General part information
RCDX60 Series
Coax, Pin Center, Assembly Contact Gold Crimp 26 AWG Coaxial
Documents
Technical documentation and resources
No documents available
