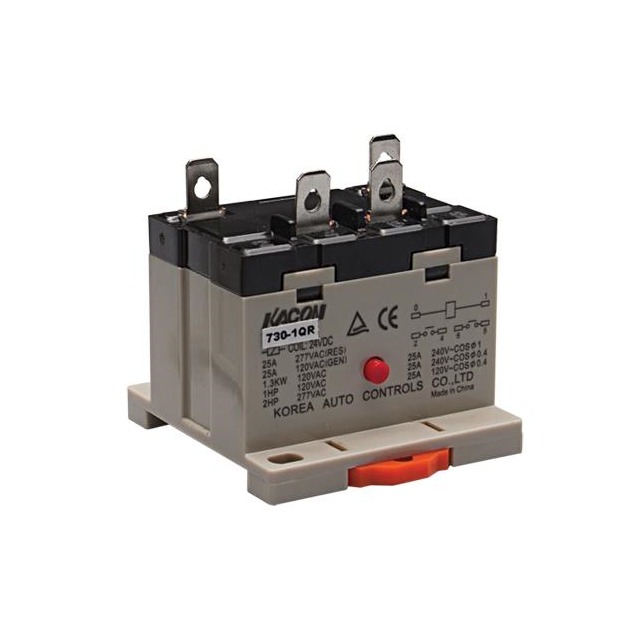

730-1QR-220VAC
ActiveKacon
RELAY GEN PURPOSE SPST 30A 220V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
730-1QR-220VAC
ActiveKacon
RELAY GEN PURPOSE SPST 30A 220V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 730-1QR-220VAC |
|---|---|
| Coil Current | 11.8 mA |
| Coil Voltage | 220 VAC/DC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 30 A |
| Features | Test Button |
| Mounting Type | DIN Rail |
| Operate Time | 30 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Relay Type | General Purpose |
| Release Time | 30 ms |
| Switching Voltage | 277 VAC, 30 VDC |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 13.88 | |
Description
General part information
730-1QR Series
General Purpose Relay SPST-NO (1 Form A) 220VAC Coil DIN Rail
