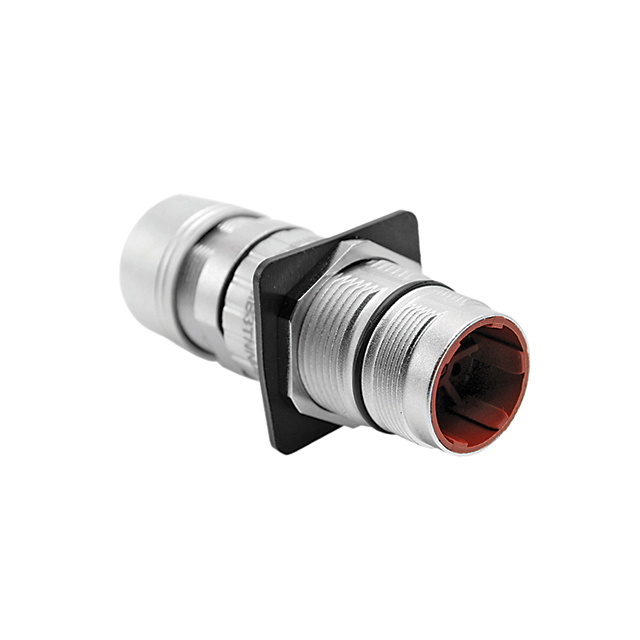

MB3TNN0900-S2

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG MALE 9POS PNL MT

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG MALE 9POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	MB3TNN0900-S2

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	2 mm, 1 mm
Contact Type	Crimp
Features	Cord Grip
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	PE
Number of Positions [custom]	3
Number of Positions [custom]	5
Number of Positions [custom]	9
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-9
Shielding	Shielded
Type	For Male Pins

Part	Orientation	Contact Type	Note	Contact Shape	Features	Shielding	Shell Finish	Contact Size	Housing Color	Shell Size - Insert	Type	Shell Material	Ingress Protection	Material Flammability Rating	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Insert Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
Amphenol Sine Systems Corp MB3TNN0800-S3	Keyed	Crimp	Contacts Not Included	Circular	Cord Grip	Shielded	Nickel	1 mm 2 mm	Silver	M23-8	For Male Pins	Zinc Die Cast	IP67 - Dust Tight Waterproof	UL94 V-0	3	8	4	PE	Polyamide (PA66) Nylon 6/6	Receptacle Housing	-20 C	130 °C	Bulkhead - Front Side Nut
Amphenol Sine Systems Corp MB3TNN0900-S2	Keyed	Crimp	Contacts Not Included	Circular	Cord Grip	Shielded	Nickel	1 mm 2 mm	Silver	M23-9	For Male Pins	Zinc Die Cast	IP67 - Dust Tight Waterproof	UL94 V-0				PE	Polyamide (PA66) Nylon 6/6	Receptacle Housing	-20 C	130 °C	Bulkhead - Front Side Nut	3	5	9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 23.99

General part information

9 (5 + 3 Power + PE) Position Circular Connector Receptacle Housing Panel Mount Cord Grip
