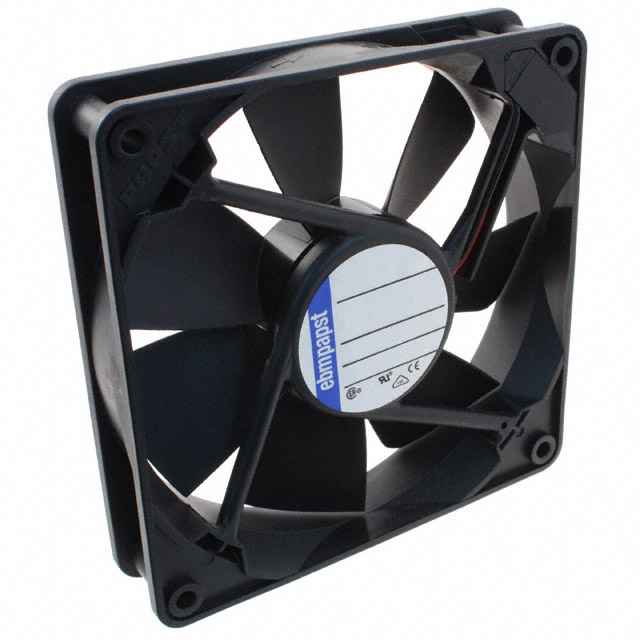

4484FM
Activeebm-papst Inc.
DC FAN AXIAL BALL BEARING 24V 12V TO 28V 82.4CFM 38DB 119 X 119 X 25.4MM MIDDLE SPEED
Deep-Dive with AI
Search across all available documentation for this part.
4484FM
Activeebm-papst Inc.
DC FAN AXIAL BALL BEARING 24V 12V TO 28V 82.4CFM 38DB 119 X 119 X 25.4MM MIDDLE SPEED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4484FM |
|---|---|
| Air Flow | 2.3 m³/min |
| Air Flow | 82 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Noise | 38 dB(A) |
| Power (Watts) | 3.2 W |
| Size / Dimension [x] | 119 mm |
| Size / Dimension [y] | 119 mm |
| Termination | 2 Terminals |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 28 VDC |
| Voltage Range [Min] | 12 VDC |
| Weight | 0.38 lb |
| Weight | 172.37 g |
| Width [y] | 25.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 40.45 | |
| 10 | $ 36.94 | |||
| 25 | $ 35.54 | |||
| 50 | $ 33.20 | |||
| 100 | $ 30.63 | |||
| 250 | $ 30.16 | |||
Description
General part information
4484F Series
Fan Tubeaxial 24VDC Square - 119mm L x 119mm H Ball 82.0 CFM (2.30m³/min) 2 Terminals
