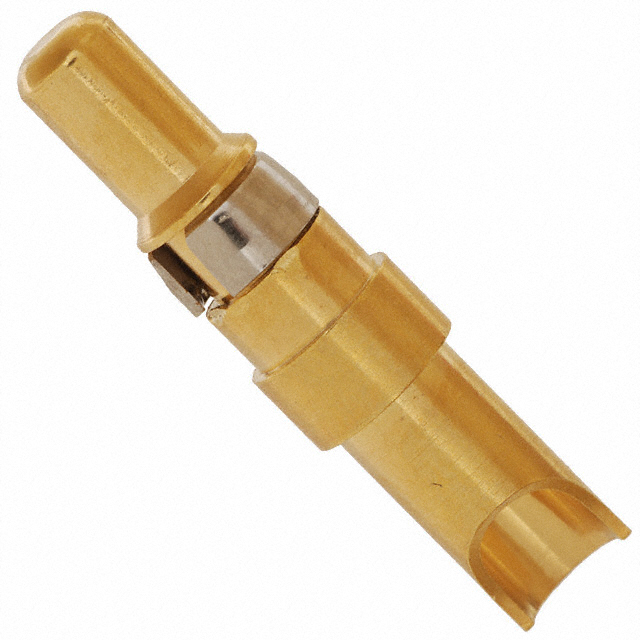

131C10039X

Active

Amphenol CONEC

D SUB CONTACT, PIN, SOLDER CUP, 10-12AWG ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol CONEC

D SUB CONTACT, PIN, SOLDER CUP, 10-12AWG ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	131C10039X

Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Termination	Solder Cup
Contact Type	Male Pin
Termination Finish	Gold
Termination Finish Thickness	Flash
Type	Power
Wire Gauge [Max]	12 AWG
Wire Gauge [Min]	10 AWG

Part	Contact Type	Contact Termination	Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Termination Finish	Wire Gauge [Max]	Wire Gauge [Min]	Termination Finish Thickness	Contact Finish	Termination Finish Thickness	Termination Finish Thickness
Amphenol CONEC 131C10039X	Male Pin	Solder Cup	Power	Copper Alloy	0.76 Ám	30 Áin	Gold	12 AWG	10 AWG	Flash	Gold
Amphenol CONEC 131C10019X	Male Pin	Solder Cup	Power	Copper Alloy	0.76 Ám	30 Áin	Gold	20 AWG	16 AWG		Gold	0.203 µm	8 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

D-Sub Contact Male Pin Gold 10-12 AWG Solder Cup Machined
