R6413-00

Active

Harwin Inc.

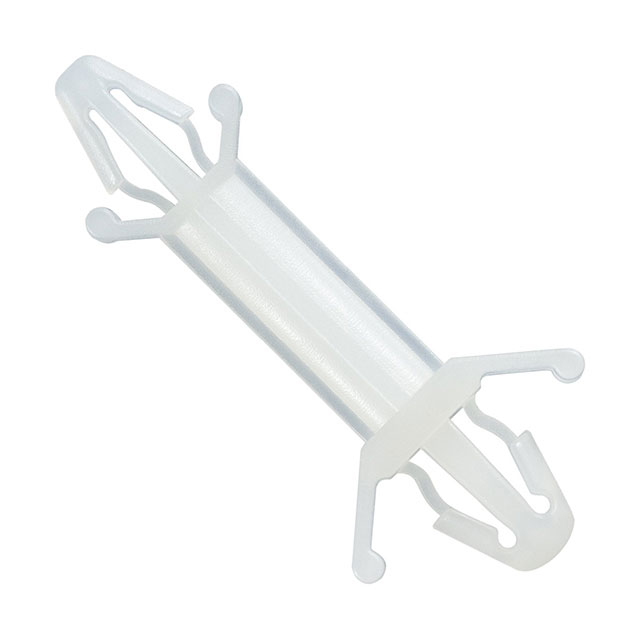

12.70MM SELF-LOCKING PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

12.70MM SELF-LOCKING PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	R6413-00

Between Board Height	0.5 in
Between Board Height	12.7 mm
Between Board Height	0.5 in
Holding Type	Snap Lock
Length - Overall [x]	29.3 mm
Length - Overall [x]	1.154 in
Material	Nylon
Mounting Hole Diameter	4.8 mm
Mounting Hole Diameter	0.189 in
Mounting Panel Thickness	2.7 mm
Mounting Panel Thickness	0.106 in
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.157 "
Support Hole Diameter [diameter]	3.99 mm
Support Panel Thickness	1.6 mm
Support Panel Thickness	0.063 in

Part	Mounting Type	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Mounting Hole Diameter	Mounting Hole Diameter	Length - Overall [x]	Length - Overall [x]	Holding Type	Material	Mounting Panel Thickness	Mounting Panel Thickness	Support Panel Thickness	Support Panel Thickness	Between Board Height	Between Board Height	Between Board Height
Harwin Inc. R6413-00	Snap Lock	0.157 "	3.99 mm	4.8 mm	0.189 in	29.3 mm	1.154 in	Snap Lock	Nylon	2.7 mm	0.106 in	1.6 mm	0.063 in	0.5 in	12.7 mm	0.5 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Board Support Snap Lock / Snap Lock Nylon 0.500" (12.70mm) 1/2"
