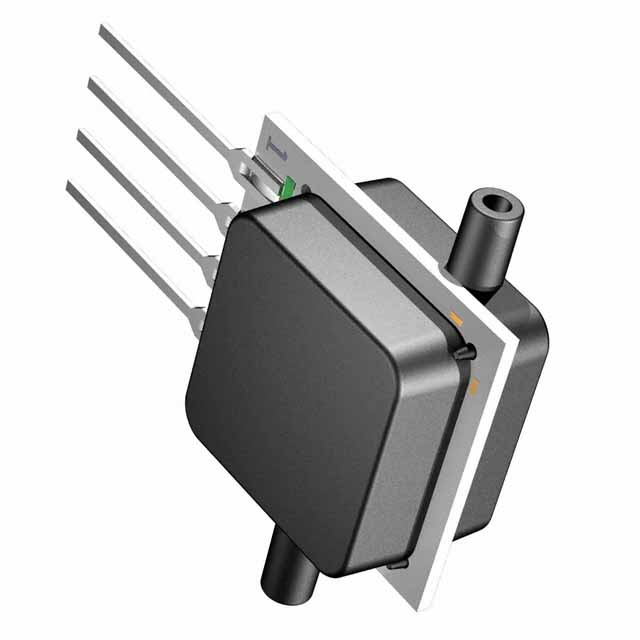

5 INCH-D2-BASIC

Obsolete

Amphenol All Sensors Corporation

SENSOR 0.18PSID 0.08" .0225V

Search across all available documentation for this part.

Obsolete

Amphenol All Sensors Corporation

SENSOR 0.18PSID 0.08" .0225V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Output [Max]	Termination Style	Mounting Type	Port Size	Port Size	Port Size	Applications	Port Style	Accuracy	Package / Case	Output Type	Operating Pressure	Operating Pressure	Pressure Type	Features	Voltage - Supply	Output
Amphenol All Sensors Corporation 20 INCH-D2-BASIC	-25 °C	85 °C	30 mV	PC Pin	Through Hole	2.13 mm	0.08 "	Dual Male Tube	Board Mount	Barbless	0.5 %	4-SIP Module	Wheatstone Bridge	4.98 kPa	0.72 PSI	Differential	Temperature Compensated	6 V
Amphenol All Sensors Corporation 5 INCH-D2-BASIC	-25 °C	85 °C	22.5 mV	PC Pin	Through Hole	2.13 mm	0.08 "	Dual Male Tube	Board Mount	Barbless	0.5 %	4-SIP Module	Wheatstone Bridge	1.25 kPa	0.18 PSI	Differential	Temperature Compensated	6 V	4.5 V
Amphenol All Sensors Corporation 10 INCH-D2-BASIC	-25 °C	85 °C	30 mV	PC Pin	Through Hole	2.13 mm	0.08 "	Dual Male Tube	Board Mount	Barbless	0.5 %	4-SIP Module	Wheatstone Bridge	2.49 kPa	0.36 PSI	Differential	Temperature Compensated	6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pressure Sensor 0.18PSI (1.25kPa) Differential Male - 0.08" (2.13mm) Tube, Dual 0 mV ~ 22.5 mV (4.5V) 4-SIP Module
